Ultra-Thin Frameless Torque Motor

104 Ultra-Thin Frameless Torque Motor

Name: 104 Ultra-Thin Frameless Torque Motor
SKU: ES-FM-U01-OD104-T3P18NM-001

Exact SKU: ES-FM-U01-OD104-T3P18NM-001

Review the recorded engineering values, controlled media and documentation status for this exact SKU before integration.

Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-FM-U01-OD104-T3P18NM-001 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

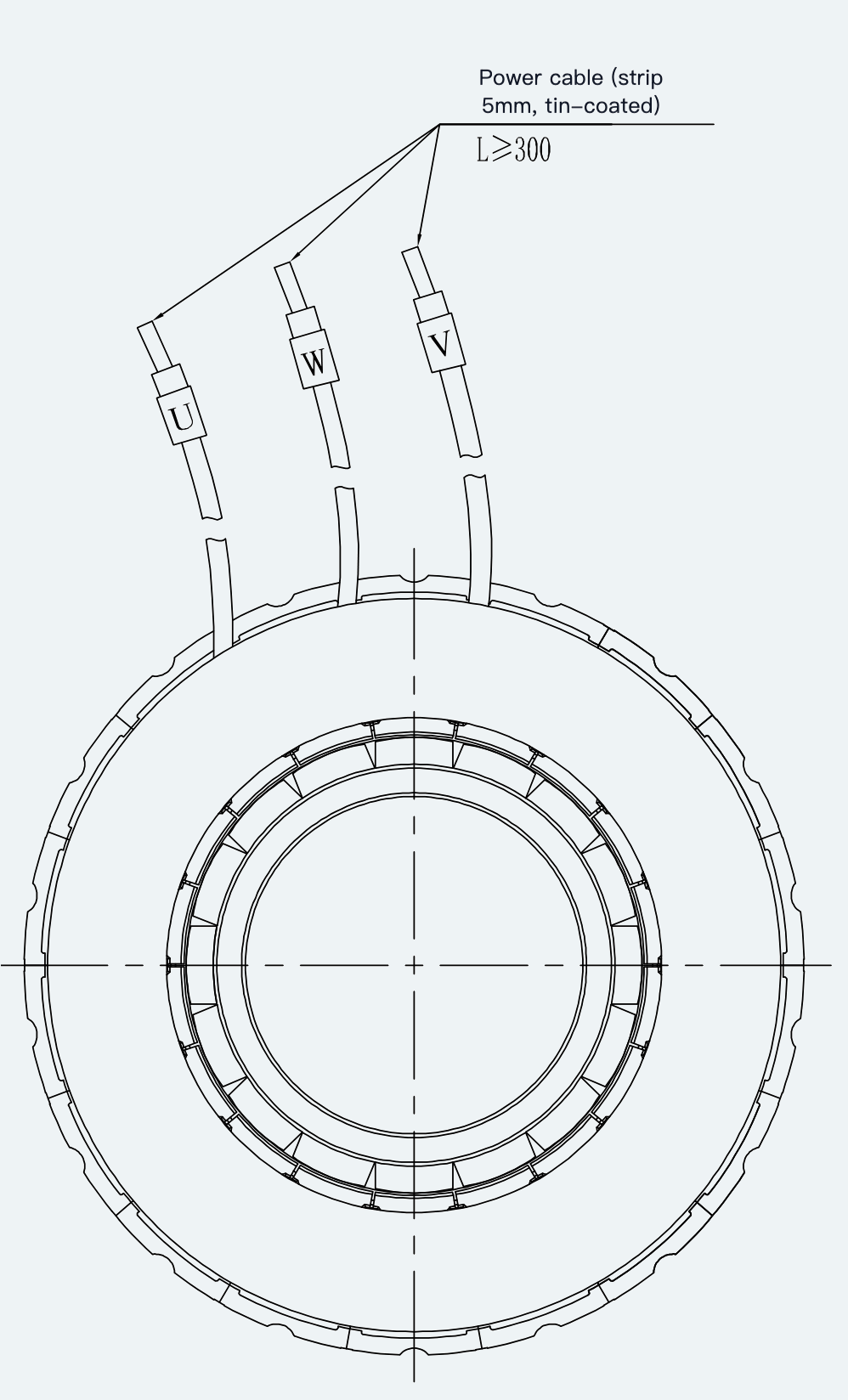

Mechanical View 1 for ES-FM-U01-OD104-T3P18NM-001 — Mechanical View 1

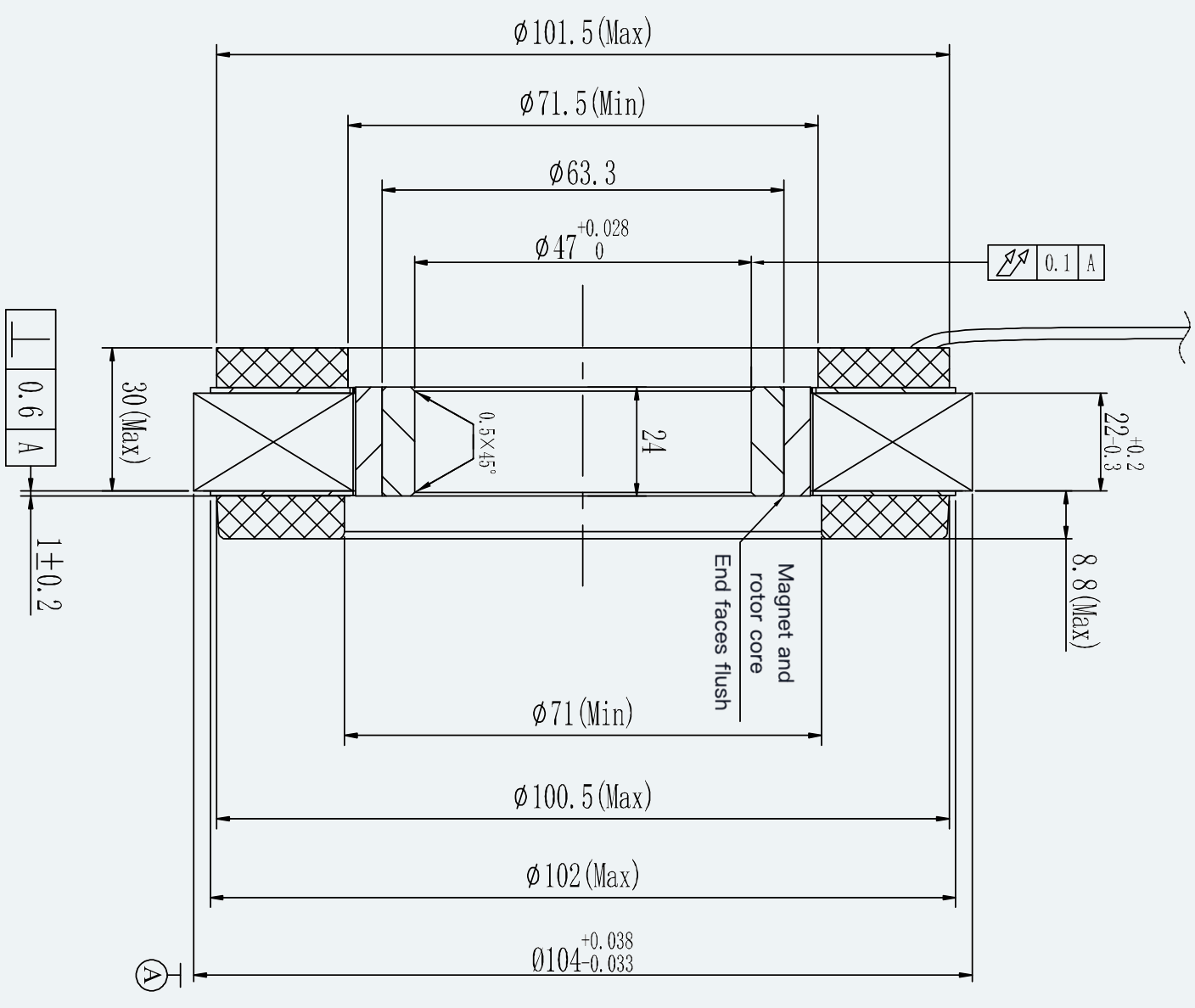

Mechanical View 2 for ES-FM-U01-OD104-T3P18NM-001 — Mechanical View 2

Annotated Drawing Data

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Power cable specification	Strip 5mm, tin-coated
Power cable minimum length	L≥300
Phase U label	U
Phase W label	W
Phase V label	V

Field	Value
Maximum outer diameter (upper end)	Φ101.5 mm max
Minimum inner diameter	Φ71.5 mm min
Mid-section diameter	Φ63.3 mm
Shaft diameter with upper tolerance	Φ47 +0.028/0 mm
Position tolerance	Position tolerance 0.1 mm relative to datum A
Maximum end height	30 mm max
Chamfer	0.5 mm × 45°
Central section height	24 mm
Mounting hole diameter	22 +0.2/-0.3 mm
Datum A	Datum A
Edge thickness	1±0.2 mm
Maximum end width	8.8 mm max
End face flush requirement	End faces flush
Magnet and rotor core relationship	Magnet and rotor core
Lower end inner diameter (min)	Φ71 mm min
Lower end maximum outer diameter	Φ100.5 mm max
Bottom maximum outer diameter	Φ102 mm max
Overall outer diameter with tolerance	Φ104 +0.038/-0.033 mm

2D Engineering Drawing Center

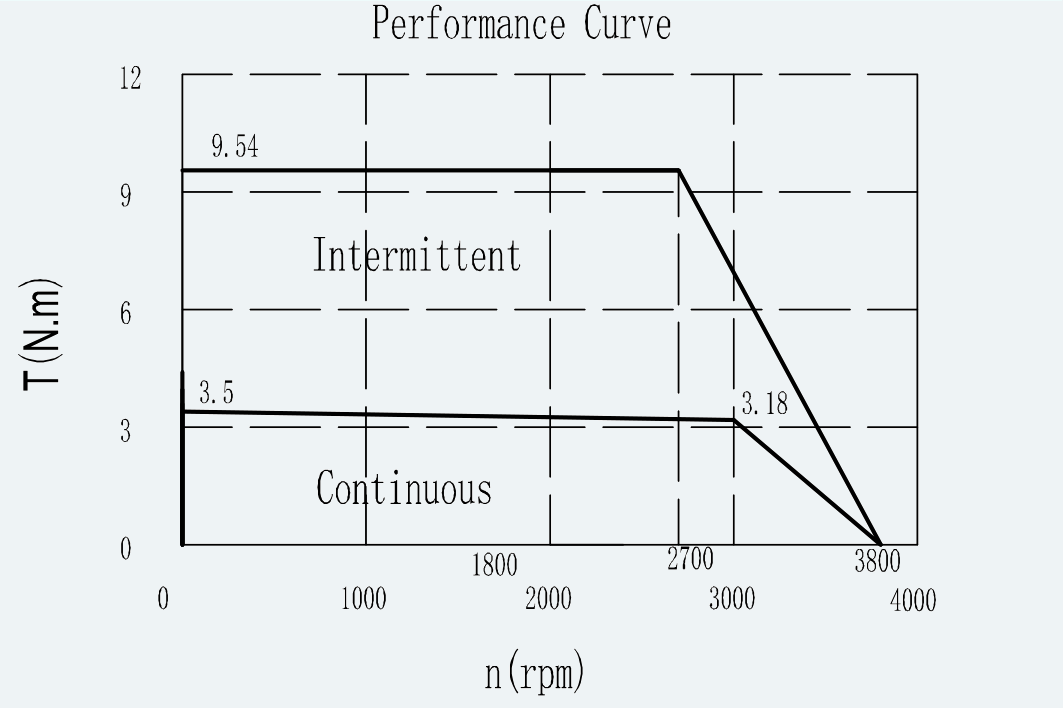

Torque-Speed Curve

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

Curve 1 for ES-FM-U01-OD104-T3P18NM-001 — Curve 1

Annotated Drawing Data

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Intermittent Operation Zone	Intermittent
Continuous Operation Zone	Continuous
Peak Torque Point	9.54
Torque Value 1	3.5
Torque Value 2	3.18
Speed Point 1	1800
Speed Point 2	2700
Speed Point 3	3800

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 22 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Stator outer diameter: 104 mm
Axial stack length: 22 mm
Rotor inner diameter: 47 mm
Mass: 1.4 kg
Lead wire / cable exit: 100 mm lead no connector

Electrical Parameters

DC-link voltage: 48 VDC
Rated current: 27 A
Maximum current: 89 A
Torque constant: 0.13 N·m/A
Voltage constant: 7.83 V/krpm
Resistance: 0.045 Ω
Electrical time constant: 3.91 ms

Performance Parameters

Rated power: 1,000 W
Rated torque: 3.18 N·m
Maximum torque: 9.54 N·m
Rated speed: 3,000 rpm

Mechanical Parameters

Rotor inertia: 3.1 kg·cm²
Mechanical time constant: 1.44 ms

Thermal Parameters

Temperature sensor configuration: None

Environmental & Insulation

Insulation class: F

Feedback & Sensors

Feedback type: None
Number of poles: 16
