AC Servo Motor

60 mm AC Servo Motor — 220 VAC · 200 W · 0.64 N·m · 3,000 rpm

Exact SKU: ES-SM-A02-060S-T0P64NM-200W-001

Confirm the motion profile, drive compatibility, mounting, shaft load, feedback interface and thermal conditions before final selection.

Rated current
1.6 A
Peak torque
1.92 N·m
Flange size
60 mm
Torque constant
0.48 N·m/A
Bearing radial force
180 N
Bearing axial force
90 N
Electrical time constant
2.03 ms
Pole pairs
3
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-SM-A02-060S-T0P64NM-200W-001 envelope view

Scale: 100%

2D Engineering Drawing Center

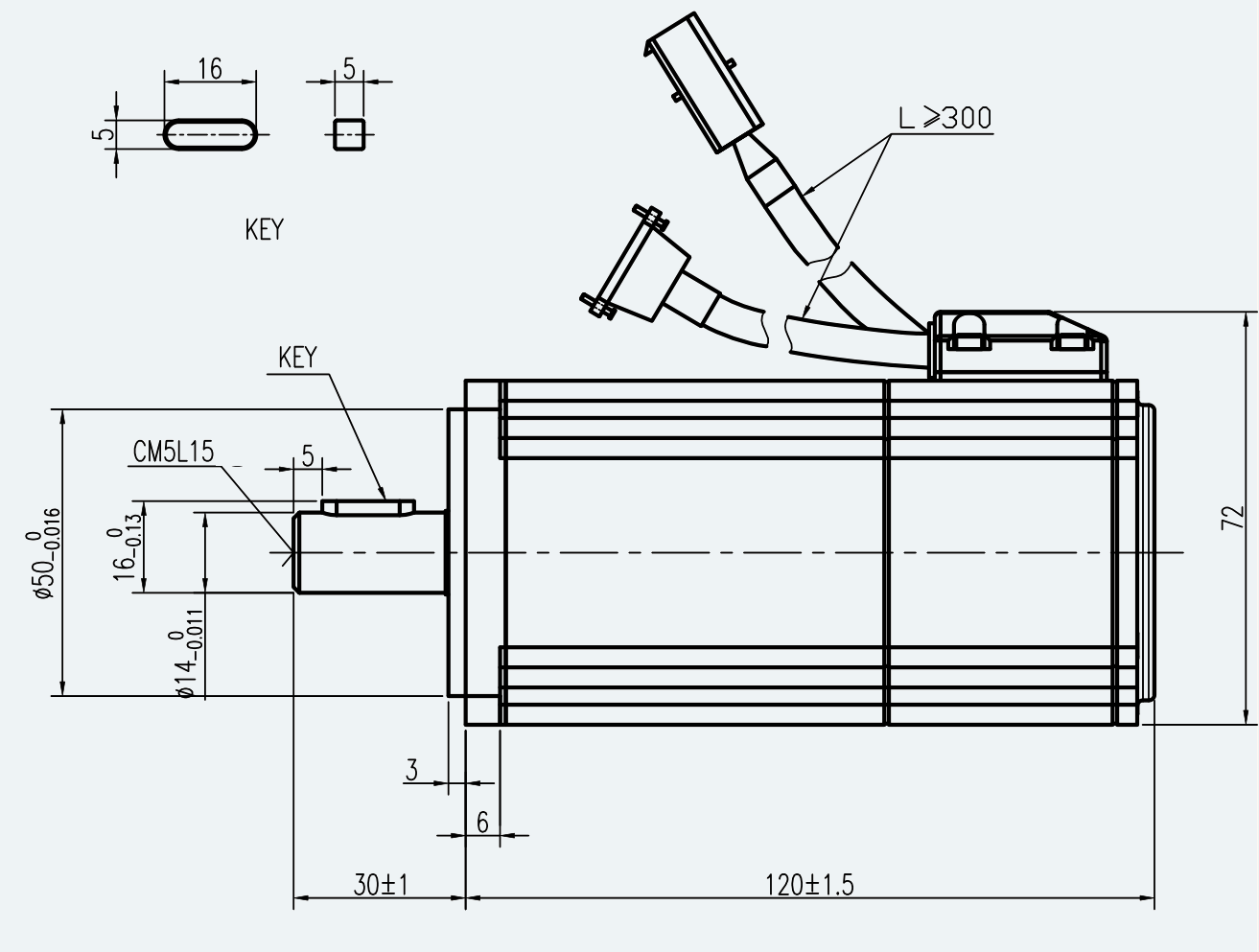

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

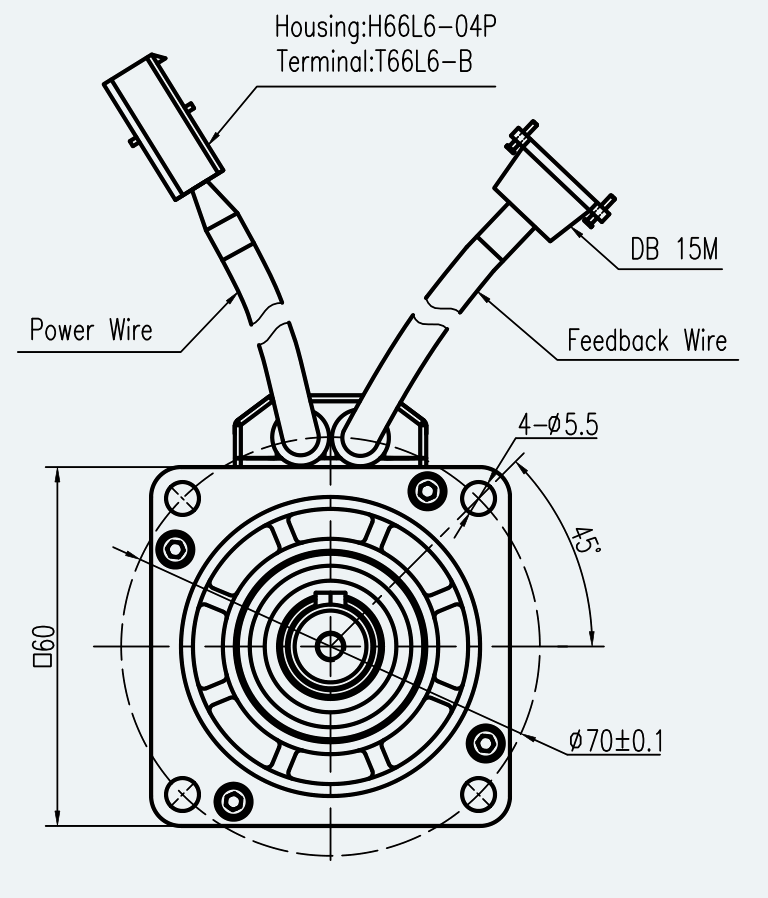

Mechanical View 1 for ES-SM-A02-060S-T0P64NM-200W-001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 20 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Flange size
60 mm
Bearing radial force
180 N
Bearing axial force
90 N

Electrical Parameters

Rated voltage
220 VAC
Rated current
1.6 A
Torque constant
0.48 N·m/A
Electrical time constant
2.03 ms

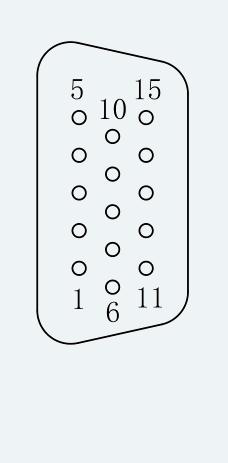

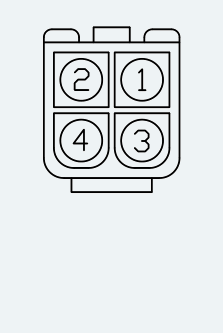

Motor outlet mode
Three-row 15-pin connector

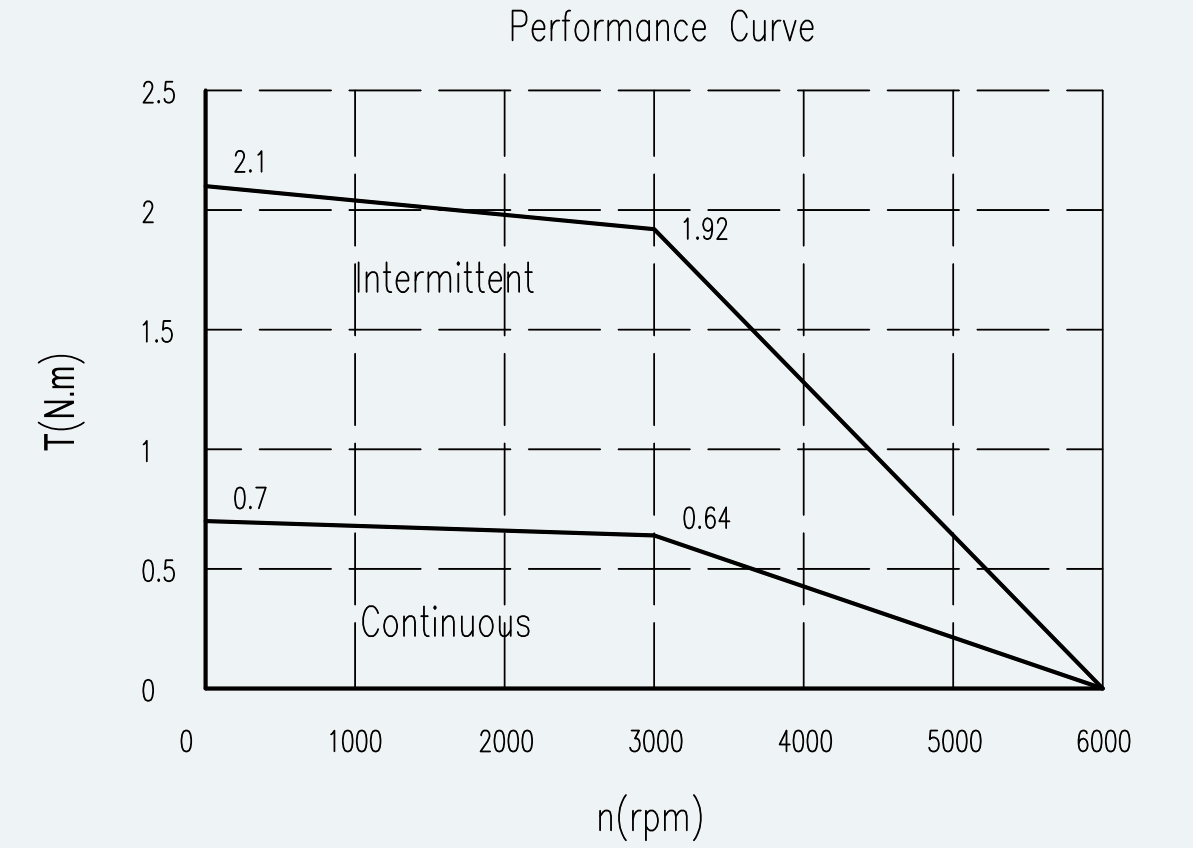

Performance Parameters

Rated power
200 W
Rated torque
0.64 N·m
Peak torque
1.92 N·m
Starting / stall torque
0.7 N·m
Rated speed
3,000 rpm

Mechanical Parameters

Rotor inertia
0.375 kg·cm²
Mechanical time constant
2.26 ms

Thermal Parameters

Cooling method
Totally enclosed, self-cooled

Environmental & Insulation

Insulation class
F
Protection grade
IP65, shaft end IP54
Operating temperature
-20 to 40°C (no freezing)

Feedback & Sensors

Pole pairs
3

RFQ Workflow

Request pricing and engineering review

The request carries this exact public SKU and page context. Controlled 2D and native CAD files remain subject to engineering review.

Request a Quote

Engineering Files

Controlled documentation access

2D drawing

Controlled Review

A reviewed attachment is handled through the controlled documentation workflow.

Request 2D drawing

STEP / STP CAD

Controlled Review

A validated browser preview may be available; native CAD remains controlled.

Request controlled CAD

Datasheet

Controlled Review

This requestable documentation package is prepared during the first engineering response.

Request documentation review

Installation notes

Controlled Review

This requestable documentation package is prepared during the first engineering response.

Request engineering notes

Nearby Configurations

Compare close series variants

ES-SM-A02-060S-T0P64NM-200W-001 60 mm flange · 220 VAC · 200 W · 0.64 N·m · 3000 rpm ES-SM-A02-060S-T0P64NM-200W-002 Protection Rating: IP65, shaft end IP54 ES-SM-A02-060S-T0P64NM-200W-003 Holding Brake: With holding brake; Protection Rating: IP65, shaft end IP54
