AC Servo Motor

180 mm AC Servo Motor — 380 VAC · 3,000 W · 19.1 N·m · 1,500 rpm

Exact SKU: ES-SM-A03-180G-T19P1NM-3000W-001

Confirm the motion profile, drive compatibility, mounting, shaft load, feedback interface and thermal conditions before final selection.

Rated current
10.6 A
Peak torque
57.3 N·m
Peak current
31.8 A
Flange size
180 mm
Torque constant
1.98 N·m/A
Back EMF constant
120 V/krpm
Bearing radial force
1,470 N
Bearing axial force
490 N
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-SM-A03-180G-T19P1NM-3000W-001 envelope view

Scale: 100%

2D Engineering Drawing Center

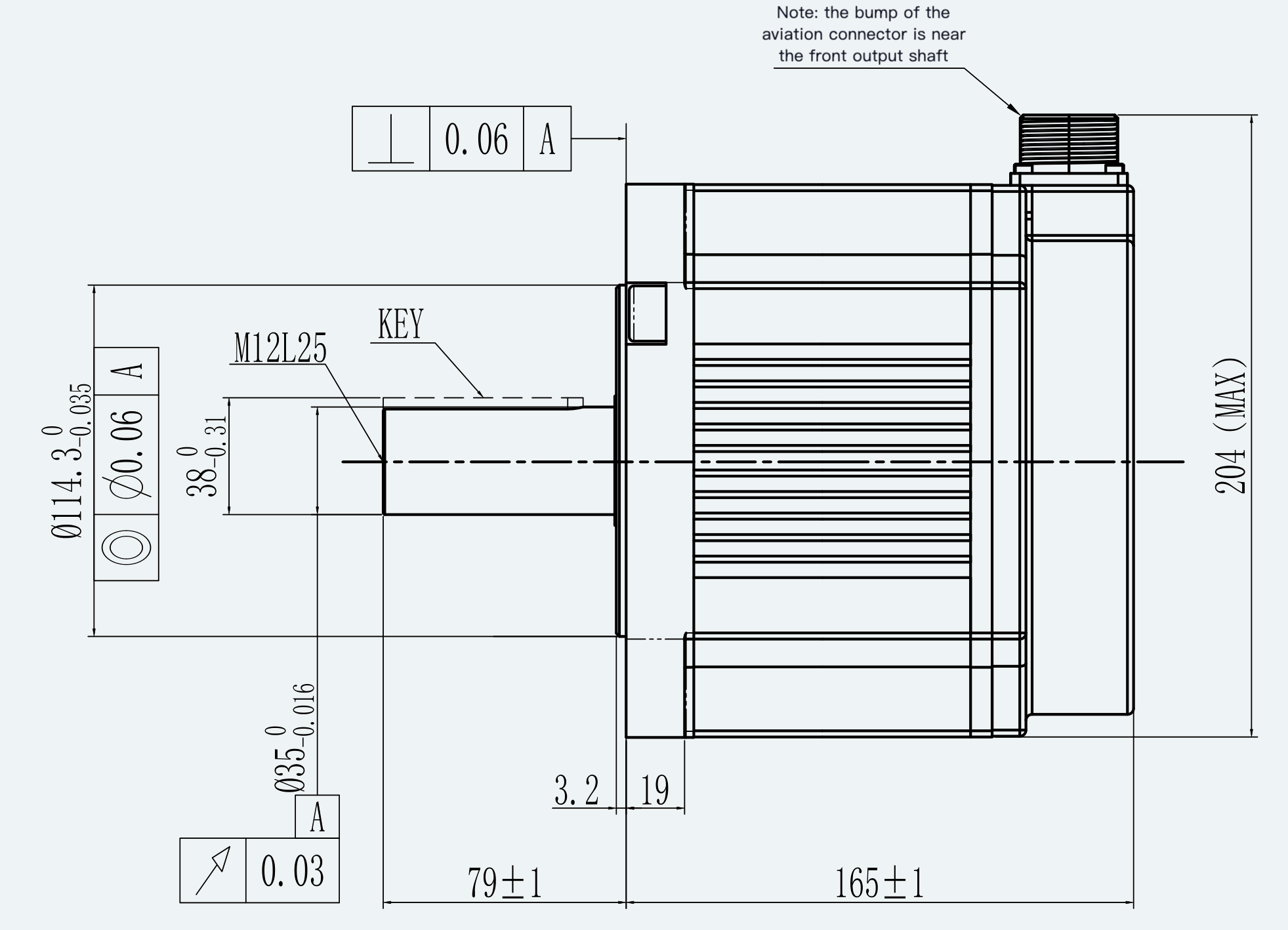

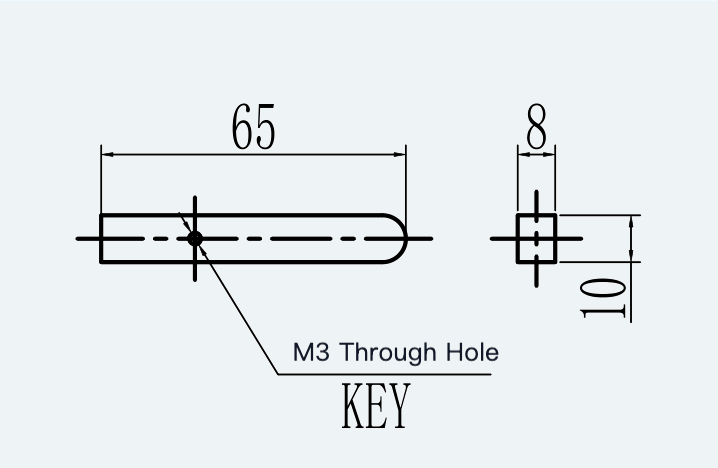

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

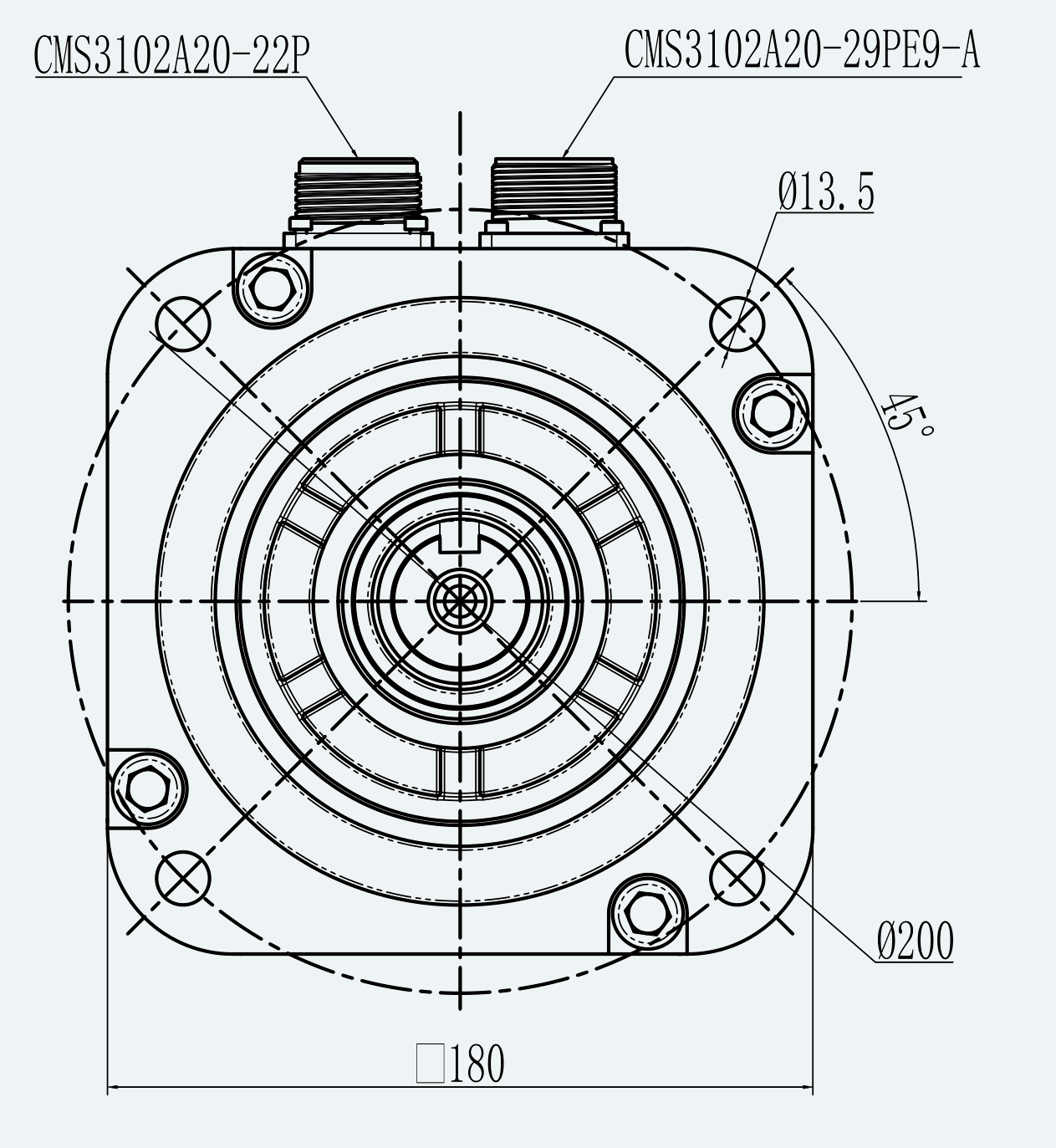

Mechanical View 1 for ES-SM-A03-180G-T19P1NM-3000W-001
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 25 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

Flange size
180 mm
Bearing radial force
1,470 N
Bearing axial force
490 N
Mass
14 kg

Electrical Parameters

Rated voltage
380 VAC
Rated current
10.6 A
Peak current
31.8 A
Starting / stall current
11.7 A
Number of poles
10
Torque constant
1.98 N·m/A
Back EMF constant
120 V/krpm
Electrical time constant
13.8 ms
Motor outlet mode
Standard socket

Performance Parameters

Rated power
3,000 W
Rated torque
19.1 N·m
Peak torque
57.3 N·m
Starting / stall torque
21 N·m
Rated speed
1,500 rpm

Mechanical Parameters

Rotor inertia
52.43 kg·cm²
Mechanical time constant
1.11 ms

Thermal Parameters

Cooling method
Totally enclosed, self-cooled

Environmental & Insulation

Insulation class
F
Protection grade
IP65, shaft end IP54 (Note: with shaft-end oil seal IP54, without oil seal IP50)
Operating temperature
-20 to 40°C (no freezing)

Feedback & Sensors

Pole pairs
5
