305 Stereo 3d Camera Series

305 Stereo 3d Camera records for controlled OEM engineering selection and RFQ.

This page is organized as a true industrial series: shared platform specifications first, then SKU-level configuration differences, controlled files and engineering confirmation.

Stereo Vision Camera 1 public SKU records RFQ specification review
Request a Quote

Save the requirement context or a referenced record for manual engineering review; no model is automatically recommended.

Common Specs

Shared platform specifications

Platform invariants

Product form
Stereo Vision Camera
Selection basis
RFQ target specification review
Document access
Controlled review; no automatic CAD release

SKU Selection Workspace

Prepare a structured engineering review

The available public data is not sufficient to determine one SKU reliably. Capture known requirements and leave unknown fields open for engineering review.

1 published records; automatic matching unavailable

Engineering Confirmation Required

Public data does not fully define a unique selector.

Use the visible SKU matrix fields and add the target record to your RFQ list. The engineering team will confirm any remaining model-code differences before CAD release.

Optional Requirements for Engineering Review

Add what you know

Optional · About 1 minute

Not added

These details do not change the selected catalog record. Add what you know to help engineering review electrical, environmental, application and documentation requirements. You can skip any field or complete it later in the RFQ.

These details travel with the RFQ or controlled-file request. They are requirements for review, not confirmed product options.

Technical Verification

Verify the current candidate records

This always-visible table is an engineering cross-check. It follows the selector state, marks missing public fields and does not replace final compatibility review.

Model Depth Technology Baseline Operating Range Depth Field of View Depth Resolution and Frame Rate Data Connection Protection Rating Dimensions Weight Power Supply Action
ES-CV-C00-S001-V001 Stereo Vision 18 4 - 100cm H 88° x V 65° ± 3° (1280 x 800 @ 20cm) Up to 1280 x 800 @ 30fps 848 x 530 @ 60fps USB 3.0 (recommended) & USB 2.0 IP54 (only when the Type-C interface is properly connected and the screws are tightened) 42 x 42 x 23mm 68 DC 5V & ≥700mA
Request Quote

Product Visualization

Product imagery and CAD-style placeholders are organized for engineering review without exposing private source files.

Product image

Product image

2D Dimension Data

Representative structured preview

2D dimension drawing recorded · controlled access. This series view shows a representative extracted drawing. Open an exact SKU page for full 2D structure, dimension tables and notes.

Request Full Drawing Package

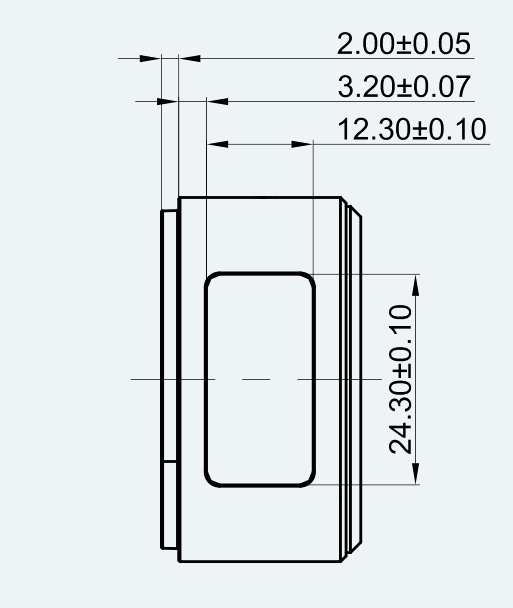

Mechanical Dimensions extracted from dimension drawing for 305 Stereo 3d Camera Series
Controlled structure diagram preview for envelope review

Structure previews

2 recorded

Dimension tables

0 recorded

Notes / text blocks

0 recorded

Engineering Files

SKU-specific documentation

This ES-CV-C00-S001 set contains 1 model records with controlled documentation workflow. Please select the exact model before requesting controlled CAD / STEP review.

1 PDF drawing / datasheet workflows

Each documentation record maps to one exact public SKU and engineering record.

Controlled 3D CAD requests

LiDAR envelopes, optical windows, connector positions and mounting interfaces must be confirmed against the exact public SKU.

Please select the exact model before requesting controlled CAD / STEP review. Series-level CAD is intentionally not exposed because platform variants can have different envelopes.
