42 mm Hollow-Shaft Stepper Motor Series — ES-ST-HS05
Hollow-shaft stepper motor records organized by frame family, pass-through envelope and winding evidence.
Start with the reviewed through-bore and motor record values. Shaft support, routed services and dynamic load remain engineering-review context.
2 model records
42 mm frame
2D pending review / STEP approved controlled
5 differential fields
Save a recorded candidate and its engineering context to the RFQ basket. CAD / STEP files remain subject to controlled review.
Common Specs
Shared platform specifications
Platform invariants
- Motor construction
- Hollow-shaft hybrid stepper motor
- Frame family
- Medium-Frame
- Frame size
- 42 mm frame
- Documentation
- 2D pending review / STEP approved controlled
- Grouping confidence
- Data Backed Grouping
Hollow-Shaft Motor Selection
Select a recorded hollow-shaft stepper motor configuration
Start with the reviewed through-bore and motor record values. Shaft support, routed services and dynamic load remain engineering-review context.
No catalog values selected.
0 published record(s) do not contain one or more selected fields and have moved to manual engineering review.
Optional Requirements for Engineering Review
Add what you know
Optional · About 1 minute
These details do not change the selected catalog record. Add what you know to help engineering review electrical, environmental, application and documentation requirements. You can skip any field or complete it later in the RFQ.
These details travel with the RFQ or controlled-file request. They are requirements for review, not confirmed product options.
Requirements saved for engineering review
Technical Verification
Technical SKU matrix
The table shows approved model-level engineering evidence independently of automatic selection. Missing values remain explicit and prevent unsupported compatibility claims.
2 candidate records
| Model | Rated Voltage | Holding Torque | Body Length | Rated Current | Phase Resistance | Phase Inductance | Detent Torque | Action |
|---|---|---|---|---|---|---|---|---|
| ES-ST-17HS2034-4D-100 | 3.8 V | 0.25 N·m | 34.1 mm | 1 A RMS | 3.6 Ω | 4.5 mH | 0.014 N·m | |
| ES-ST-17HS2048-4D-250 | 2.25 V | 0.48 N·m | 48.1 mm | 2.5 A RMS | 1 Ω | 1.8 mH | 0.02 N·m |
Product Visualization
Product imagery and CAD-style placeholders are organized for engineering review without exposing private source files.
Product image

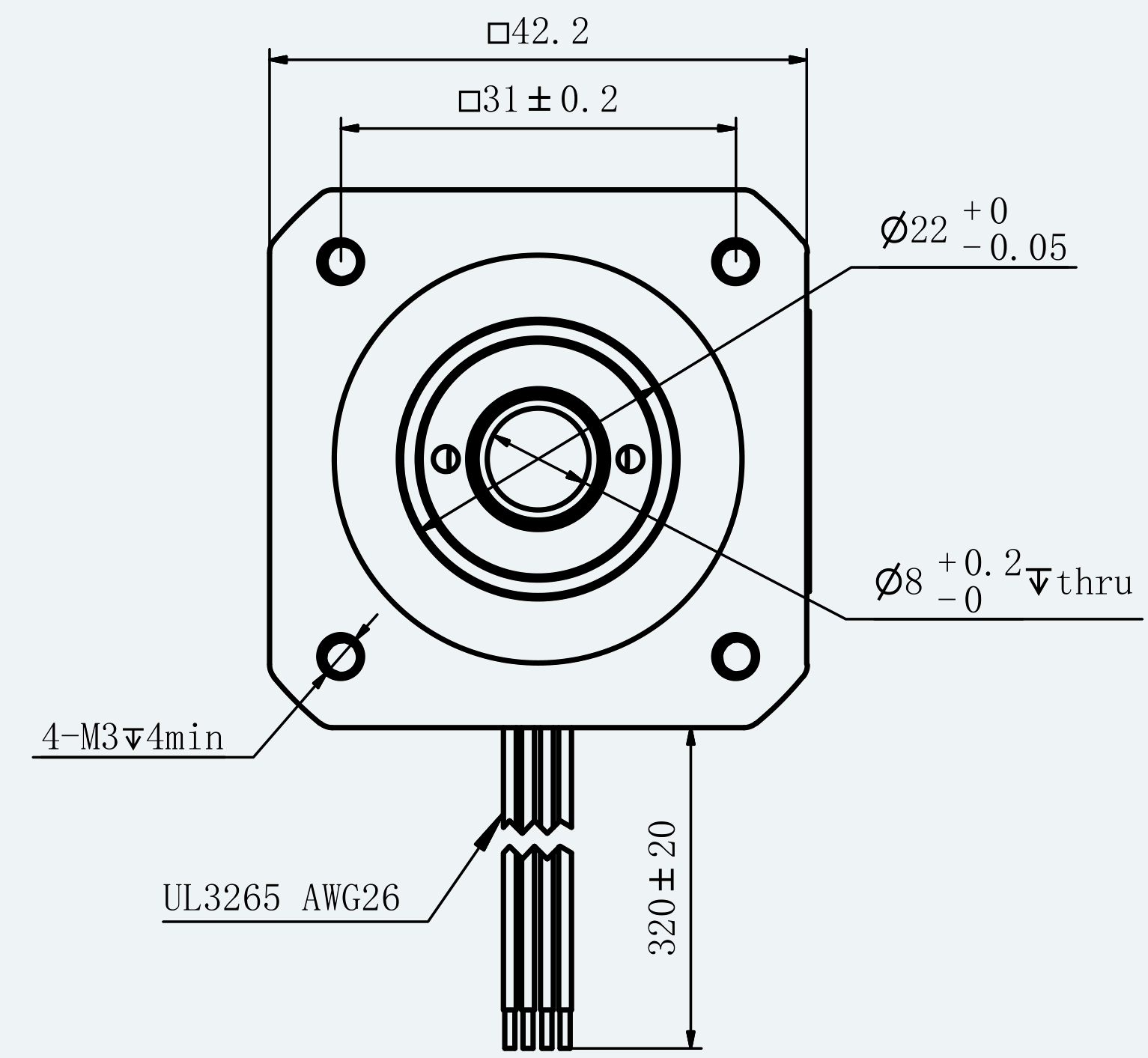

2D Dimension Data
Representative structured preview
2D dimension drawing recorded · controlled access. This series view shows a representative extracted drawing. Open an exact SKU page for full 2D structure, dimension tables and notes.
Structure previews
3 recorded
Dimension tables
0 recorded
Notes / text blocks
0 recorded
Engineering Files
Controlled documentation review
Model-level document relationships remain under evidence review. Preserve the required document types with the RFQ; engineering must confirm each record-to-file relationship before controlled access.
Documentation scope pending record mapping
Engineering confirms the model and file relationship before any controlled record is released.
Controlled 3D CAD requests
Mechanical envelopes can differ by power, stack, brake or winding configuration.
Submit the structured requirements before controlled CAD / STEP review. All files remain pending engineering review until the record-to-file relationship is confirmed.
Application Fit / RFQ
Where this platform fits
Use the SKU matrix to narrow the recorded public model before requesting controlled documentation or adding the item to the RFQ list.
