Robot Component

4 Robot Component — 75 mm, 150 mm · 5 mm: 165 mm/s; 10 mm: 330 mm/s

Confirm stroke, load, speed, mounting, drive interface, duty cycle and installation envelope before final selection.

Exact SKU ES-EC-S01-M003

Stroke: 75 mm 150
Maximum speed: 5 mm: 165 mm/s; 10 mm: 330
Mass: Non-brake — 75 mm stroke: 1.40 kg; 150 mm stroke: 1.65 kg; brake — 75 mm stroke: 1.47 kg; 150 mm stroke: 1.72
Frame size: 4
Body variant: Standard body
Lead screw pitch: 5 mm; 10

Request engineering quote Review engineering files

2D drawing

Review the drawing with its engineering data

Primary drawing views stay beside the annotated data table so a focused row highlights the matching callout.

Reviewed annotated drawing

Primary Drawing Viewer

Mechanical View 1 1 / 6

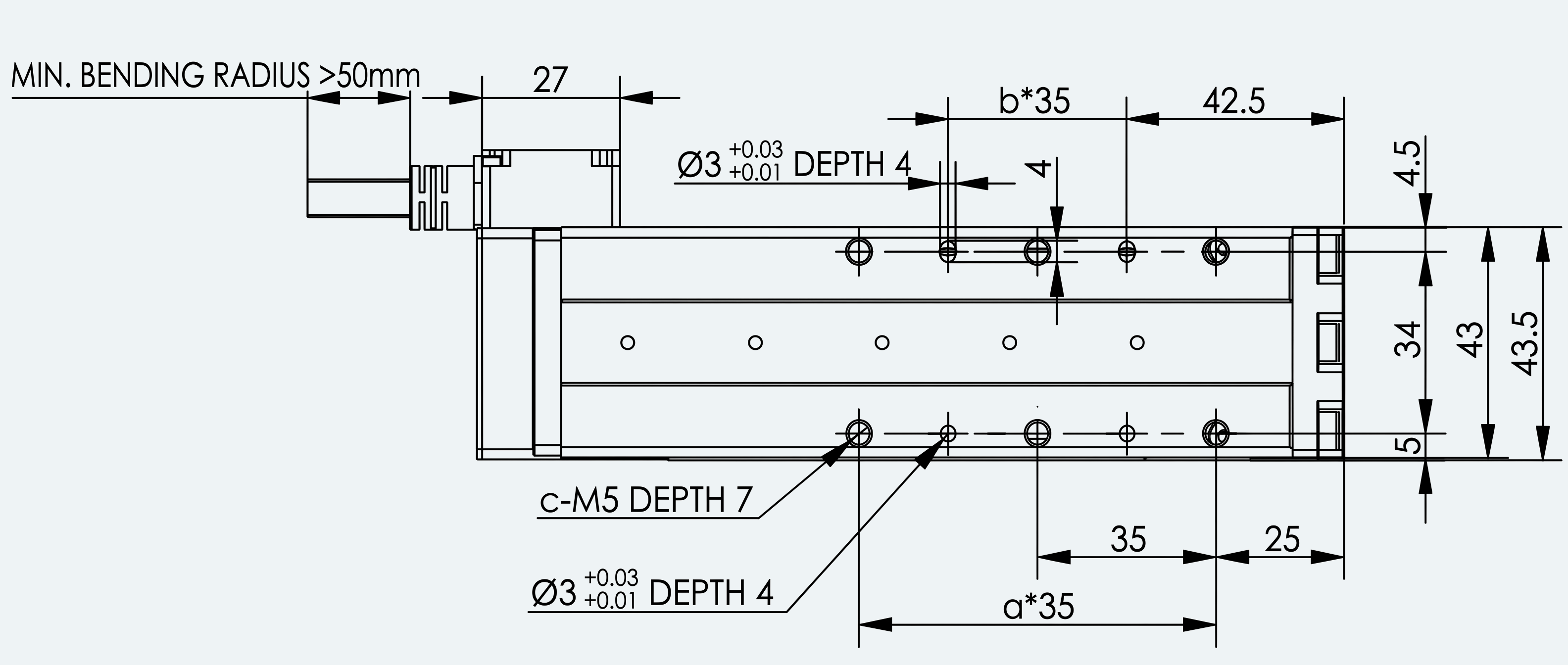

Mechanical View 1 for ES-EC-S01-M003 — Mechanical View 1

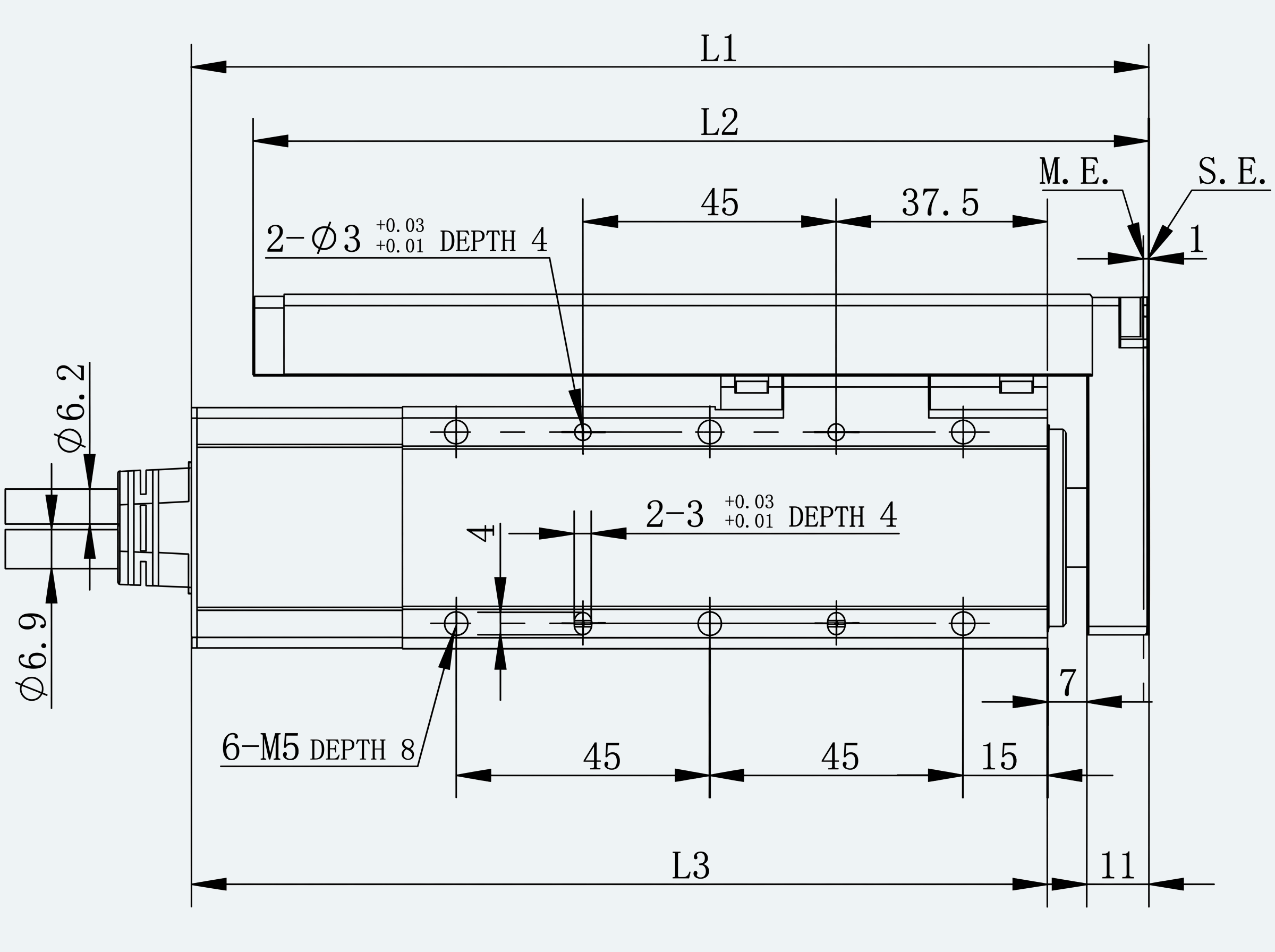

Mechanical View 3 for ES-EC-S01-M003 — Mechanical View 3

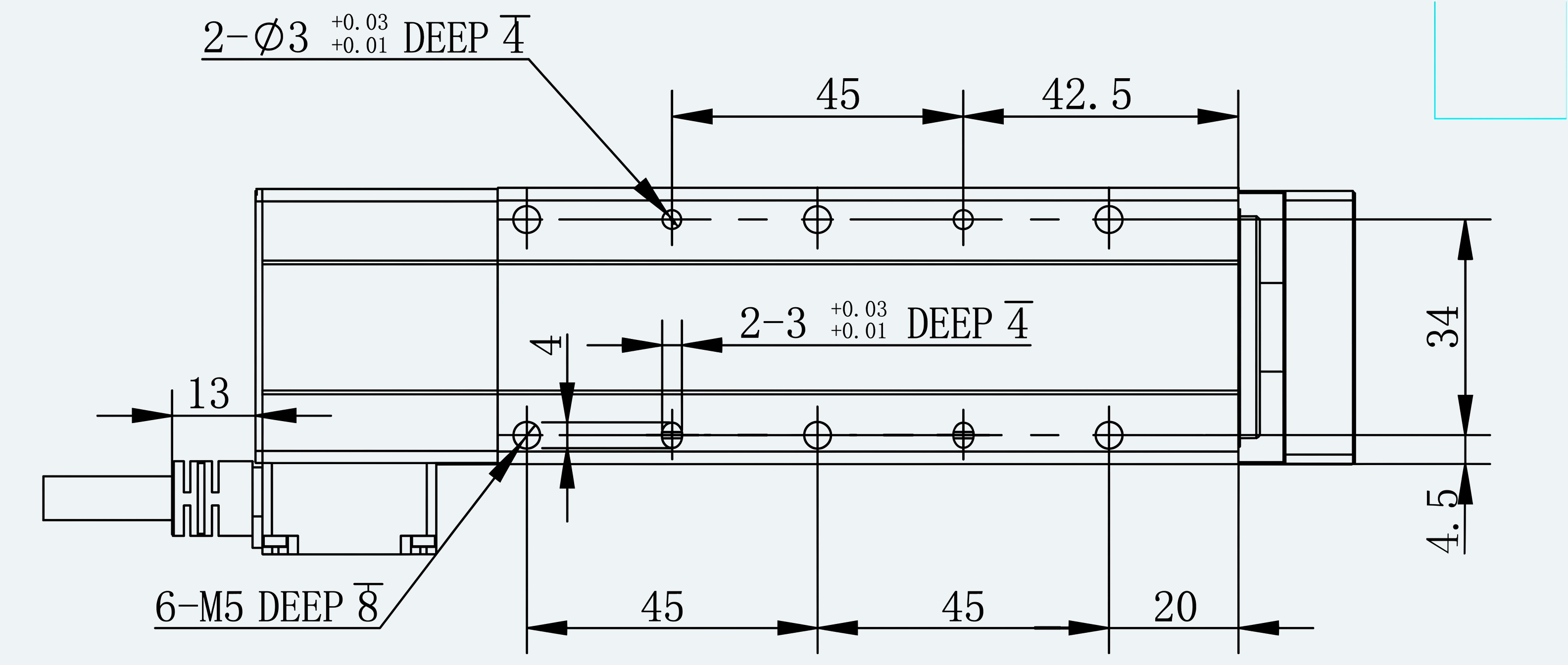

Mechanical View 6 for ES-EC-S01-M003 — Mechanical View 6

Annotated Drawing Data

14 drawing fields

Hover, focus or select a row to locate the matching field on the drawing.

Field	Value
Upper mounting pitch parameter b	b × 35 mm
Upper right-end mounting pitch	42.5 mm
Upper locating hole diameter and depth	Diameter 3 mm, tolerance +0.03/+0.01 mm, depth 4 mm
Upper local vertical offset	4 mm
Right-end upper vertical offset	4.5 mm
Body height	34 mm
Overall height	43 mm
Maximum overall height	43.5 mm
Lower edge offset	5 mm
M5 threaded hole depth	C-M5 threaded holes, depth 7 mm
Lower locating hole diameter and depth	Diameter 3 mm, tolerance +0.03/+0.01 mm, depth 4 mm
Lower mounting pitch parameter a	a × 35 mm
Right-side mounting pitch	35 mm
Right-end mounting distance	25 mm

Field	Value

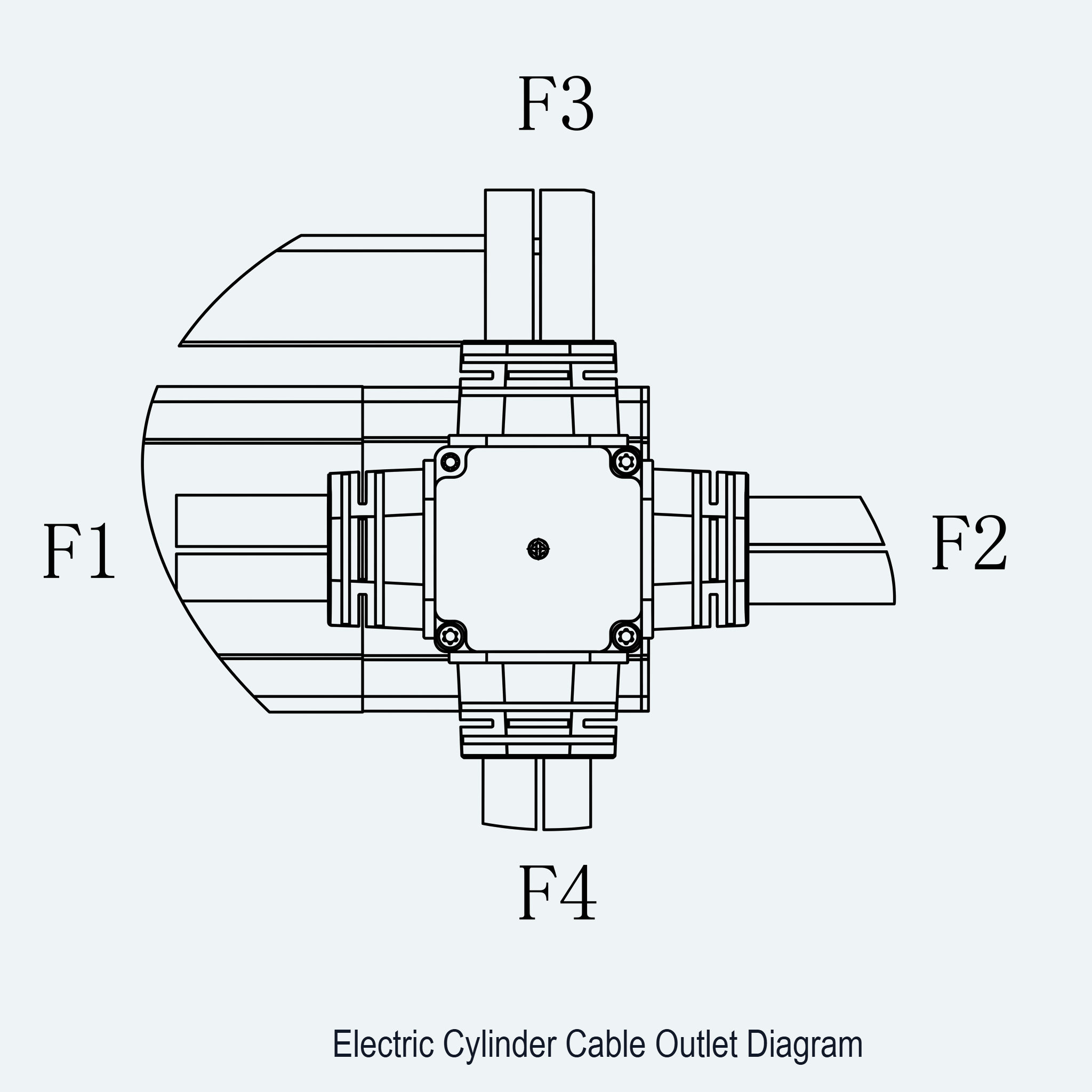

Drawing title	Electric Cylinder Cable Outlet Diagram

Field	Value
Overall length L1	L1
Length L2	L2
Upper mounting hole pitch segment 1	45 mm
Upper mounting hole pitch segment 2	37.5 mm
Upper locating hole specification	2 holes, diameter 3 mm, tolerance +0.03/+0.01 mm, depth 4 mm
Shaft diameter 1	Diameter 6.2 mm
Lower locating hole specification	2 features, size 3 mm, tolerance +0.03/+0.01 mm, depth 4 mm
Shaft diameter 2	Diameter 6.9 mm
Right end offset distance	7 mm
Threaded mounting hole specification	6 x M5 threaded holes, depth 8 mm
Lower mounting hole pitch segment 1	45 mm
Lower mounting hole pitch segment 2	45 mm
Lower end spacing	15 mm
Right end extension distance	11 mm
Overall length L3	L3
Right end clearance	1 mm

Field	Value

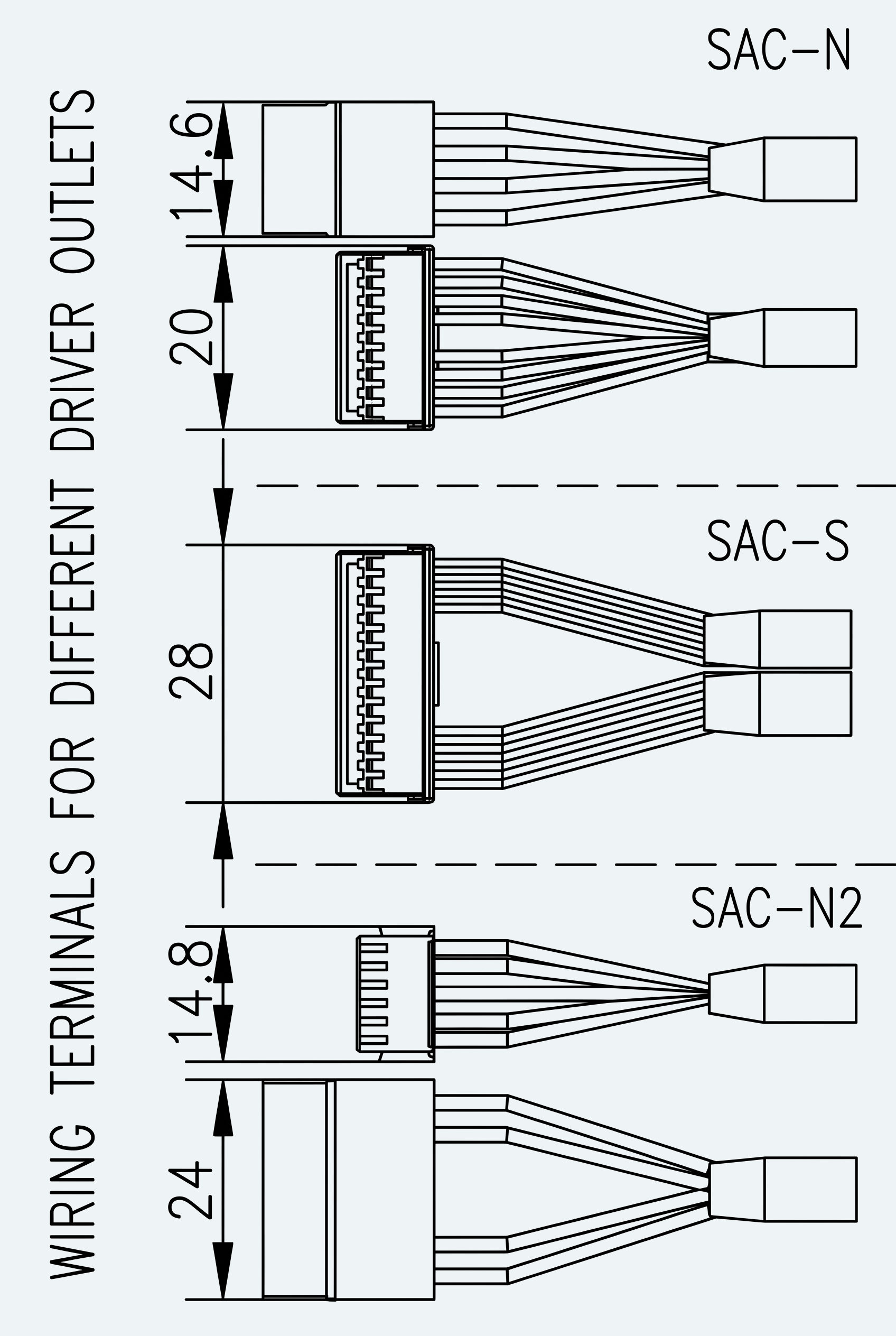

Outlet terminal compatibility note for different drivers	Outlet terminals for different driver wiring configurations

Field	Value

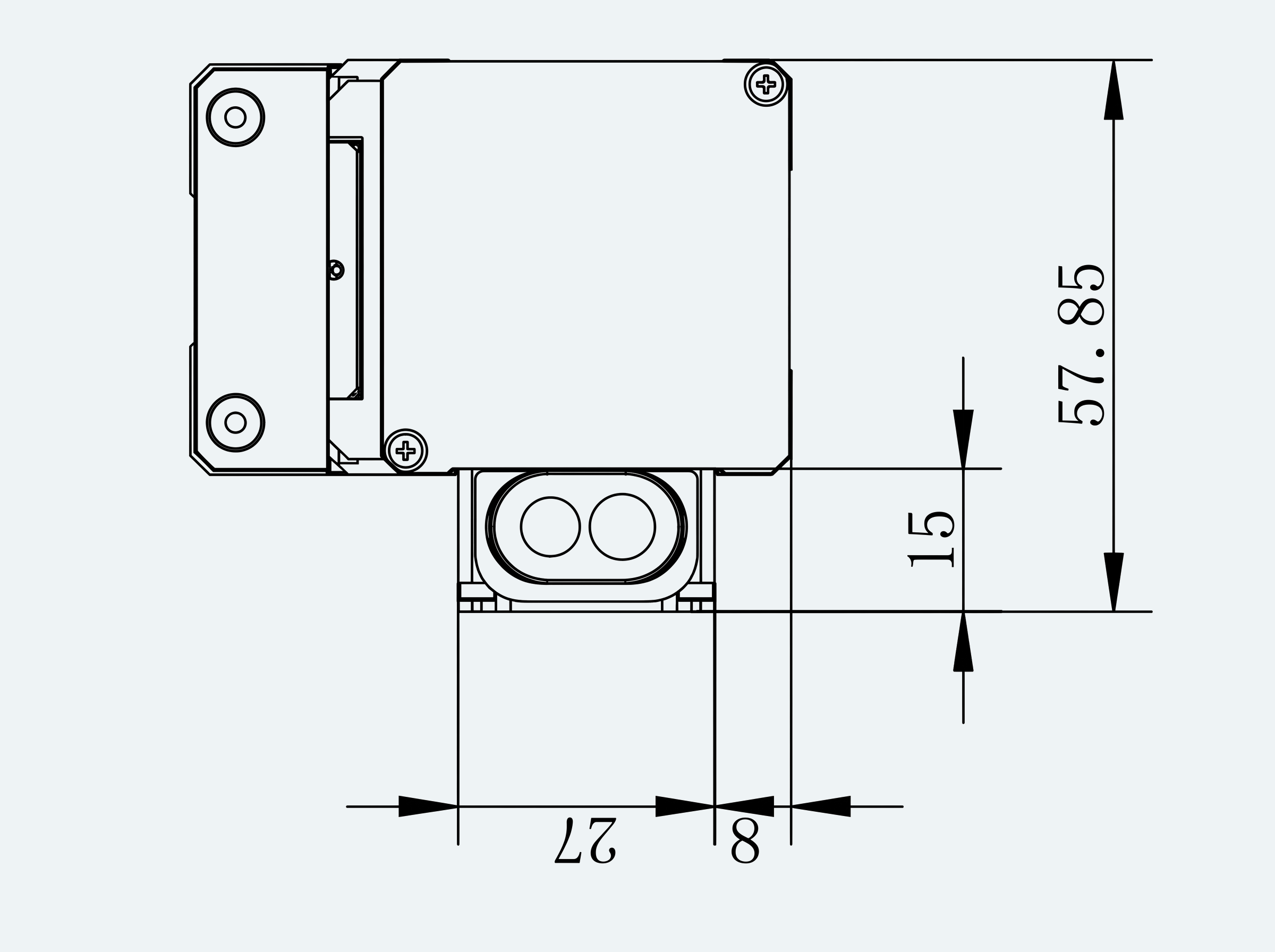

Local overall height	57.85 mm

Field	Value
Upper row locating hole specification	2 holes, diameter 3 mm, tolerance +0.03/+0.01 mm, depth 4 mm
Upper row hole spacing 1	45 mm
Upper row hole spacing 2	42.5 mm
Middle/lower row locating hole specification	2 holes, diameter 3 mm, tolerance +0.03/+0.01 mm, depth 4 mm
Vertical spacing between hole rows	4 mm
Main body height	34 mm
Right side step height	4.5 mm
Mounting threaded hole specification	6 x M5 threaded holes, depth 8 mm
Lower row hole spacing 1	45 mm
Lower row hole spacing 2	45 mm
Lower row right end spacing	20 mm

3D fit review

Inspect envelope and mounting relationships

The interactive toolbar stays with the model. Controlled CAD access remains a separate engineering-file request.

Interactive reviewed preview

Preparing 3D preview

The browser-safe model is being prepared for interactive review.

Full specifications

Grouped engineering parameters

All 23 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

23 published fields

Dimensions & Integration

7 fields

Dimension L1 (general): 75 stroke: 171 mm; 150 stroke: 244
Dimension L2 (general): 75 stroke: 159 mm; 150 stroke: 234
Dimension L3 (general): 75 stroke: 152 mm; 150 stroke: 225
Dimension B (general): 1 mm ; 3
Dimension C (general): 6 mm ; 10
Dimension D (general): 2 mm ; 4
Dimension A (general): 75 mm stroke: 2 mm; 150 mm stroke: 4

Performance Parameters

12 fields

Stroke: 75 mm 150
Lead screw pitch: 5 mm; 10
Rated thrust: 5 mm: 170 N; 10 mm: 85
Minimum thrust: 5 mm: 51 N; 10 mm: 25.5
Maximum speed: 5 mm: 165 mm/s; 10 mm: 330
Maximum acceleration: 5 mm: 2000 mm/s²; 10 mm: 3000
Maximum horizontal load: 5 mm: 15 kg; 10 mm: 15
Maximum vertical load: 5 mm: 6 kg; 10 mm: 3
Position repeatability: ±0.02 mm
Allowable moment Mx: 18.8 N·m
Allowable moment My: 18.8 N·m
Allowable moment Mz: 30.5 N·m

Mechanical Parameters

3 fields

Frame size: 4
Body variant: Standard body
Mass: Non-brake — 75 mm stroke: 1.40 kg; 150 mm stroke: 1.65 kg; brake — 75 mm stroke: 1.47 kg; 150 mm stroke: 1.72

Environmental & Insulation

1 fields

Recommended operating environment: 0 ~40°C 85% RH max
