ES-MC-01-M001
No artificial selection step is created. Preserve the record and engineering requirements for compatibility review.
Series engineering workspace
Engineering review required
Multi-Axis Real-Time Motion Controller Series — ES-MC-01
Real-time motion controller records organized for coordinated axes, control cycle, EtherCAT topology and I/O architecture review.
Capture axis count, real-time cycle, coordinated motion, network topology and I/O requirements. A remaining record is still subject to controls-engineering review.
Multi-Axis Real-Time Motion Controller
1 published records · evidence review
RFQ specification review
Save the requirement context or a referenced record for manual engineering review; no model is automatically recommended.
Common Specs
Shared platform specifications
Platform invariants
- Product form
- Multi-Axis Real-Time Motion Controller
- Selection basis
- RFQ target specification review
- Document access
- Controlled review; no automatic CAD release
Control Architecture Builder
Define the coordinated motion-control architecture
Capture axis count, real-time cycle, coordinated motion, network topology and I/O requirements. A remaining record is still subject to controls-engineering review.
Engineering review configurator
Configure the known engineering requirements
The available model evidence remains visible in Technical Verification. Because selector coverage or uniqueness is insufficient, the guided requirements below prepare an engineering review without generating an unsupported automatic recommendation.
Optional Requirements for Engineering Review
Add what you know
Optional · About 1 minute
These details do not change the selected catalog record. Add what you know to help engineering review electrical, environmental, application and documentation requirements. You can skip any field or complete it later in the RFQ.
These details travel with the RFQ or controlled-file request. They are requirements for review, not confirmed product options.
Step 1 of 5
Unknown values may be left open.
Requirements saved for engineering review
Technical Verification
Technical SKU matrix
The table shows approved model-level engineering evidence independently of automatic selection. Missing values remain explicit and prevent unsupported compatibility claims.
1 candidate records
| Model | Axis Count | Control Cycle | Motion Functions | Communication Protocol | Digital Io | Expansion | Action |
|---|---|---|---|---|---|---|---|
| ES-MC-01-M001 | 16 axes | 4 ms | Electronic gearing; electronic cam; interpolation | EtherCAT; CoE; CANopen; Modbus RTU; TCP; UDP | 16 digital inputs (NPN/PNP compatible); 16 PNP transistor outputs | 1 MicroSD slot; 1 USB Host (Type-C); 1 USB OTG |
Product Visualization
Product imagery and CAD-style placeholders are organized for engineering review without exposing private source files.
Product image
2D Dimension Data
Representative structured preview

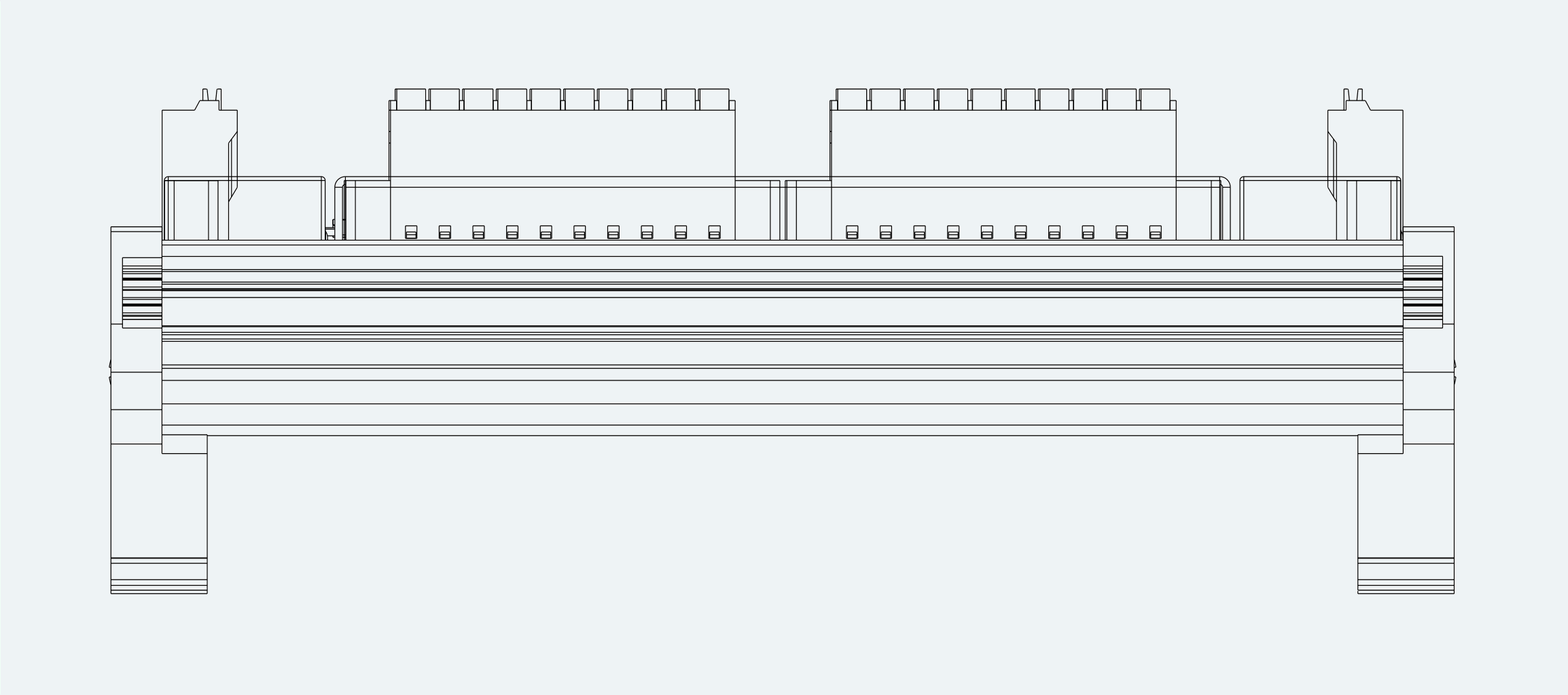

2D dimension drawing recorded · controlled access. This series view shows a representative extracted drawing. Open an exact SKU page for full 2D structure, dimension tables and notes.
