Servo Motors

Discovery path for framed servo motors, low-voltage servo axes, drive pairing and motion documentation review.

This page supports product discovery and RFQ preparation. It does not provide automated compatibility decisions, final selection validation, certification, or performance guarantees.

34 published series match this discovery path. A focused preview is available below, alongside the RFQ and engineering review workflow.

Open catalog filter Request category review

Published series

Series matching Servo Motors

Showing 6 of 34 published series

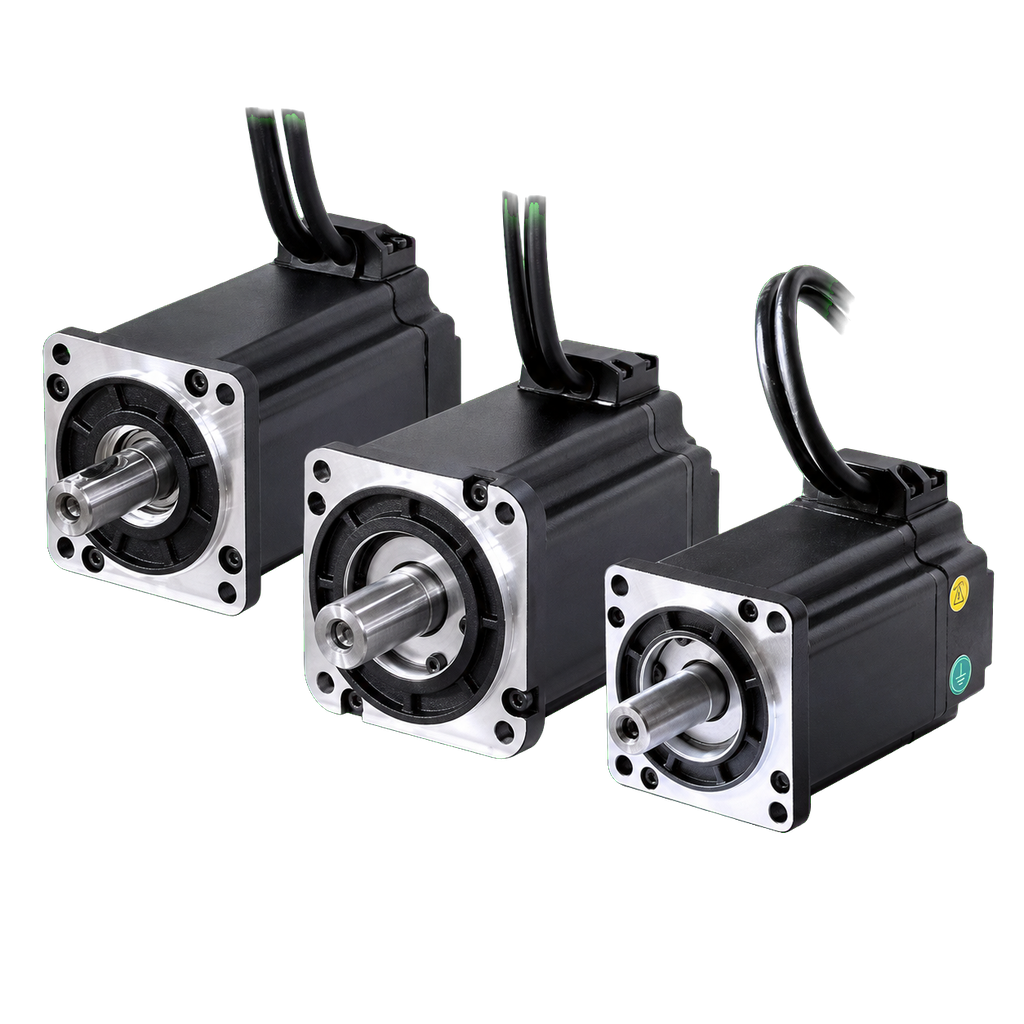

ES-SM-A01-130D Standard 130 mm AC Servo Motor Series

AC Servo Motors

ES-SM-A01-130D Standard 130 mm AC Servo Motor Series

Catalog ref ES-SM-A01-130D

Available configurations

50 models · 130 mm · 1,000 W / 1,500 W / 2,000 W / 3,000 W · 1,000 rpm / 2,000 rpm

130 mm Standard servo motor platform with 50 SKU records, controlled PDF/CAD documentation and model-specific engineering confirmation.

1000W / 1500W / 2000W / 3000W 1000rpm / 2000rpm
Frame size
130 mm
Power
1,000 W / 1,500 W / 2,000 W / 3,000 W
Rated speed
1,000 rpm / 2,000 rpm
Voltage
320 V / 560 V

Files: PDF on request · 2D available · STEP / STP controlled

2D drawing
Recorded
STEP / STP
Controlled review
Datasheet
By request
Configure series

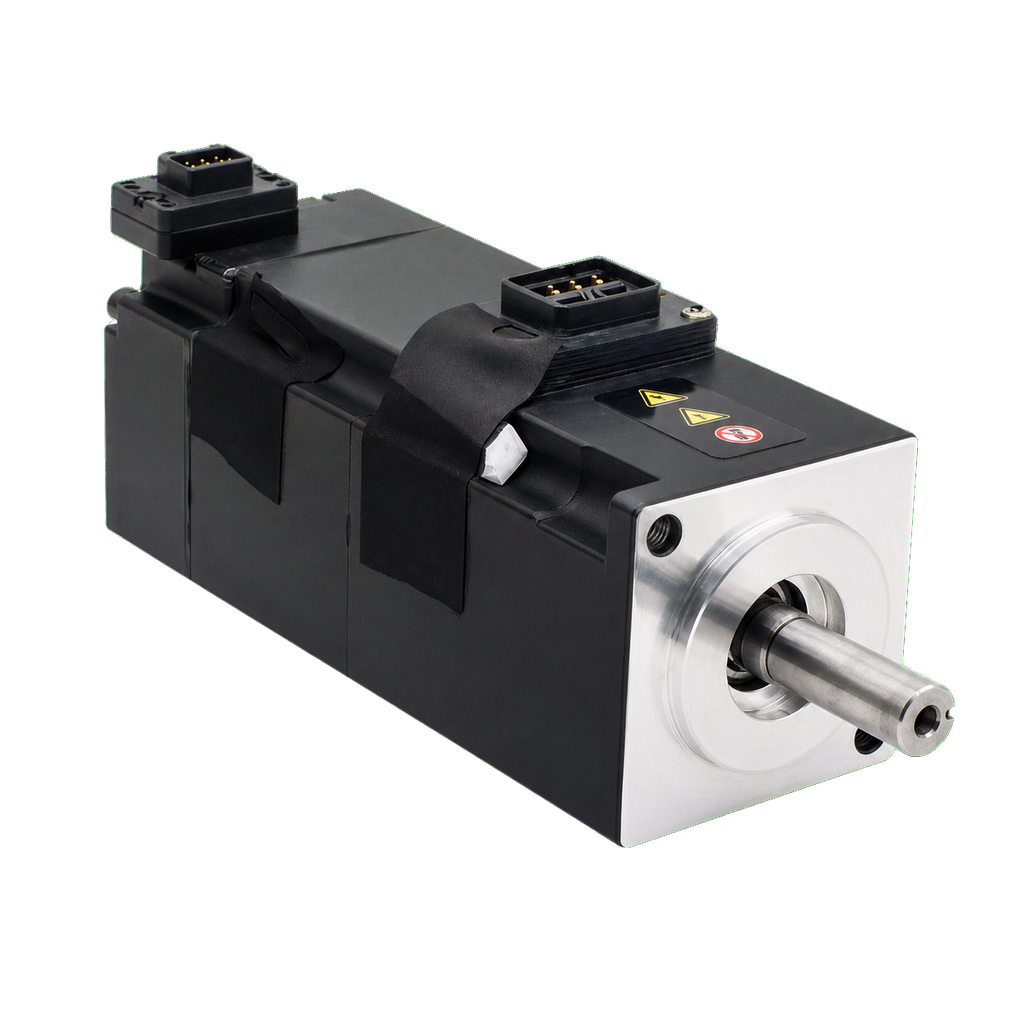

ES-SM-A03-180G Compact 180 mm AC Servo Motor Series

AC Servo Motors

ES-SM-A03-180G Compact 180 mm AC Servo Motor Series

Catalog ref ES-SM-A03-180G

Available configurations

20 models · 180 mm · 3,000 W / 3,500 W / 4,400 W / 5,500 W / 7,500 W · 1,500 rpm

180 mm Compact servo motor platform with 20 SKU records, controlled PDF/CAD documentation and model-specific engineering confirmation.

3000W / 3500W / 4400W / 5500W / 7500W 1500rpm
Frame size
180 mm
Power
3,000 W / 3,500 W / 4,400 W / 5,500 W / 7,500 W
Rated speed
1,500 rpm
Voltage
380 V

Files: PDF on request · 2D available · STEP / STP controlled

2D drawing
Recorded
STEP / STP
Controlled review
Datasheet
By request
Configure series

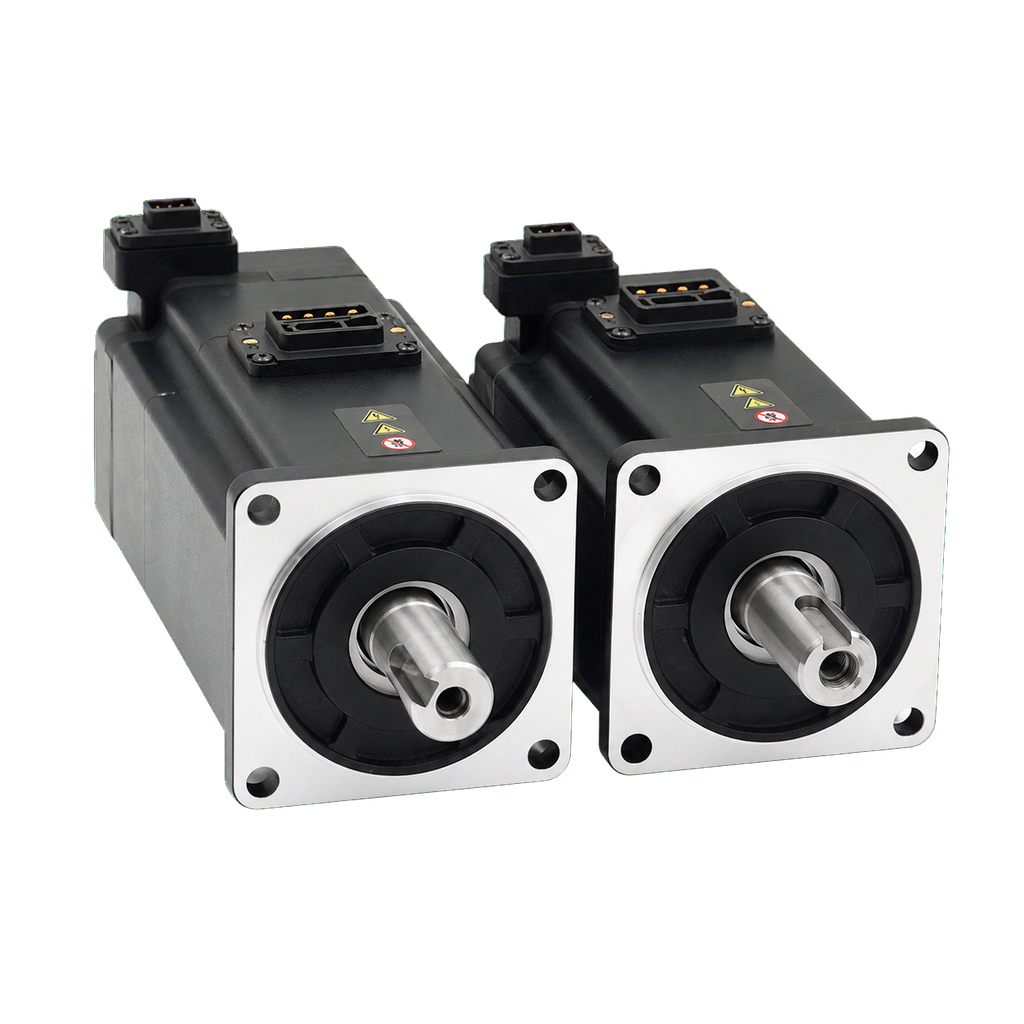

ES-SM-L02-080D Compact 80 mm Low-Voltage Servo Motor Series

Low-Voltage Servo Motors

ES-SM-L02-080D Compact 80 mm Low-Voltage Servo Motor Series

Catalog ref ES-SM-L02-080D

Available configurations

18 models

Model-level parameters require series review.

80 mm Compact 48V servo motor platform with 18 SKU records, controlled PDF/CAD documentation and model-specific engineering confirmation.

Files: PDF on request · 2D available · STEP / STP controlled

2D drawing
Recorded
STEP / STP
Controlled review
Datasheet
By request
Configure series
ES-SM-A01-060S Standard 60 mm AC Servo Motor Series

AC Servo Motors

ES-SM-A01-060S Standard 60 mm AC Servo Motor Series

Catalog ref ES-SM-A01-060S

Available configurations

16 models · 60 mm · 200 W / 400 W · 3,000 rpm

60 mm Standard servo motor platform with 16 SKU records, controlled PDF/CAD documentation and model-specific engineering confirmation.

200W / 400W 3000rpm
Frame size
60 mm
Power
200 W / 400 W
Rated speed
3,000 rpm
Voltage
300 V

Files: PDF on request · 2D available · STEP / STP controlled

2D drawing
Recorded
STEP / STP
Controlled review
Datasheet
By request
Configure series
ES-SM-A03-130G Compact 130 mm AC Servo Motor Series

AC Servo Motors

ES-SM-A03-130G Compact 130 mm AC Servo Motor Series

Catalog ref ES-SM-A03-130G

Available configurations

16 models · 130 mm · 850 W / 1,300 W / 1,800 W / 2,400 W · 1,500 rpm

130 mm Compact servo motor platform with 16 SKU records, controlled PDF/CAD documentation and model-specific engineering confirmation.

850W / 1300W / 1800W / 2400W 1500rpm
Frame size
130 mm
Power
850 W / 1,300 W / 1,800 W / 2,400 W
Rated speed
1,500 rpm
Voltage
220 V

Files: PDF on request · 2D available · STEP / STP controlled

2D drawing
Recorded
STEP / STP
Controlled review
Datasheet
By request
Configure series

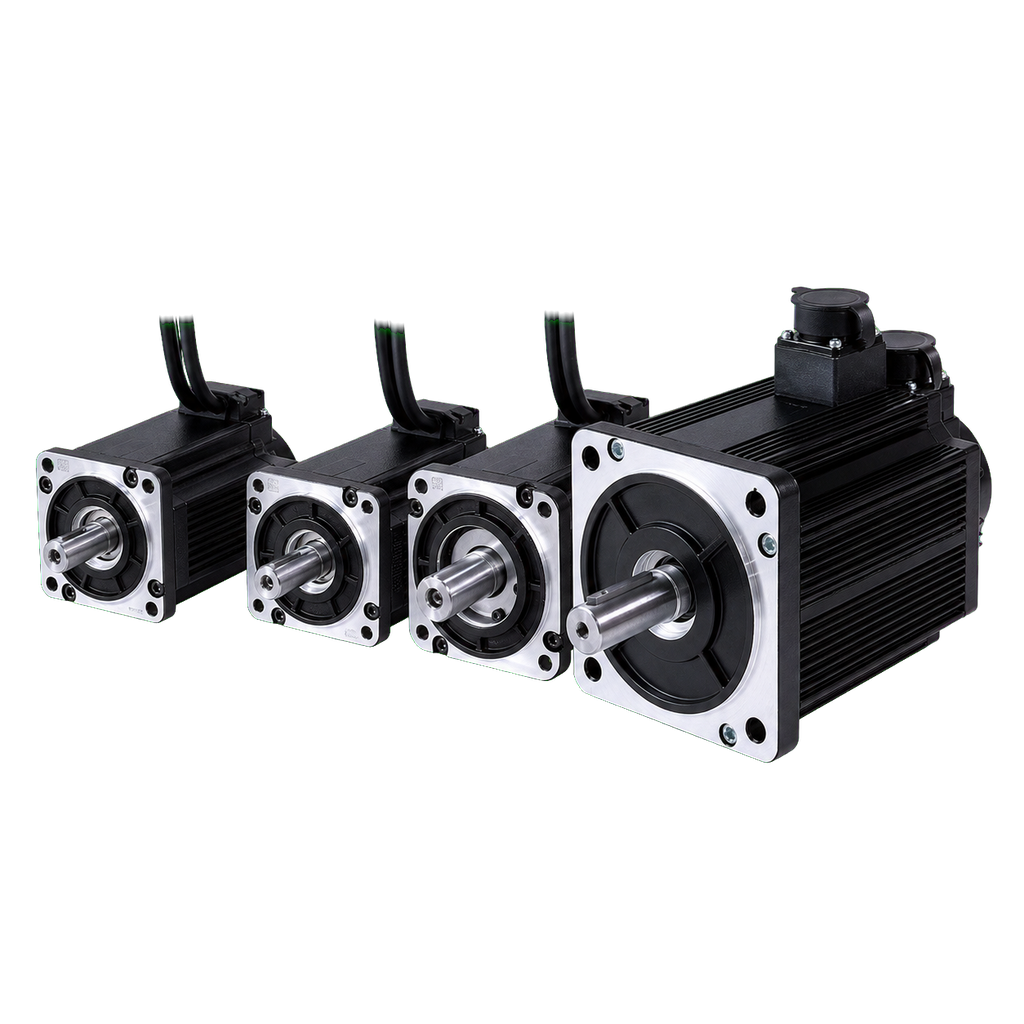

ES-SM-L01-060S 48V 60 mm Low-Voltage Servo Motor Series

Low-Voltage Servo Motors

ES-SM-L01-060S 48V 60 mm Low-Voltage Servo Motor Series

Catalog ref ES-SM-L01-060S

Available configurations

15 models

Model-level parameters require series review.

60 mm 48V servo motor platform with 15 SKU records, controlled PDF/CAD documentation and model-specific engineering confirmation.

Files: PDF on request · 2D available · STEP / STP controlled

2D drawing
Recorded
STEP / STP
Controlled review
Datasheet
By request
Configure series

The catalog filter preserves this category path so you can refine readiness, engineering-file availability and application context.

View all matching series

Common selection inputs

  • continuous torque
  • peak torque
  • speed
  • voltage
  • current
  • encoder
  • brake
  • drive pairing
  • duty cycle
  • thermal context
  • inertia matching
  • robot axis context

Review boundaries

  • Selection review should include continuous torque, peak torque, speed, voltage, encoder, brake, drive pairing, duty cycle, thermal context, inertia matching and robot axis context.
  • Servo category review does not provide final robot performance validation or automated axis compatibility decisions.
