ES-CM-BR01 8 mm Coreless Brushed Motor Series

Coreless brushed motor records organized by package length, torque, power and speed evidence.

Start with normalized package, torque, power and speed evidence. The selected record remains subject to voltage, load, thermal and shaft-interface engineering review.

Coreless Brushed Motor 8 mm platform 2 public SKU records

Request a Quote

Save a recorded candidate and its engineering context to the RFQ basket. CAD / STEP files remain subject to controlled review.

Series Platform Preview

SKU-specific files

Brand: EmbodyStack
Series code: ES-CM-BR01
SKU records: 2
Documentation: Controlled SKU-specific PDF + CAD
Frame size: 8 mm motor platform

Recorded drawings and CAD remain controlled engineering records.

Common Specs

Shared platform specifications

Platform invariants

Motor family: Coreless Brushed Motor
Nominal diameter: 8 mm
Selection basis: Reviewed normalized catalog parameters
Document access: Controlled review; no automatic CAD release

Coreless Brushed Motor SKU Selection

Select the recorded coreless brushed motor configuration

Start with normalized package, torque, power and speed evidence. The selected record remains subject to voltage, load, thermal and shaft-interface engineering review.

No catalog values selected.

Step 1 of 3

Rated torque

Choose the recorded continuous torque class.

Step 2 of 3

Rated power

Choose the recorded electrical power class.

Step 3 of 3

No-load speed

Choose the recorded no-load speed class.

Optional Requirements for Engineering Review

Add what you know

Optional · About 1 minute

Not added

These details do not change the selected catalog record. Add what you know to help engineering review electrical, environmental, application and documentation requirements. You can skip any field or complete it later in the RFQ.

These details travel with the RFQ or controlled-file request. They are requirements for review, not confirmed product options.

Target voltage Saved for engineering review; it does not create or alter a public SKU. Required torque / load point Saved for engineering review; it does not create or alter a public SKU. Required speed Saved for engineering review; it does not create or alter a public SKU. Target power Saved for engineering review; it does not create or alter a public SKU. Duty cycle Saved for engineering review; it does not create or alter a public SKU. Mounting and shaft interface Saved for engineering review; it does not create or alter a public SKU. Operating environment Saved for engineering review; it does not create or alter a public SKU.

Requested documentation

Availability remains subject to the selected record and controlled-access review.

PDF / datasheet 2D mechanical drawing Controlled STEP / CAD Interface documentation

Technical Verification Technical SKU matrix The table shows approved model-level engineering evidence independently of automatic selection. Missing values remain explicit and prevent unsupported compatibility claims. 2 candidate records

Model	Rated Voltage	No-load Speed	Loaded Speed	Torque	Action
ES-CM-BR01-M001	12 V	By request	By request	By request	Request Quote
ES-CM-BR01-M002	12 V	780 rpm	430 rpm	6.7 mN·m	Request Quote

Product Visualization

Product imagery and CAD-style placeholders are organized for engineering review without exposing private source files.

Product image

2D Dimension Data

Representative structured preview

2D dimension drawing recorded · controlled access. This series view shows a representative extracted drawing. Open an exact SKU page for full 2D structure, dimension tables and notes.

Request Full Drawing Package

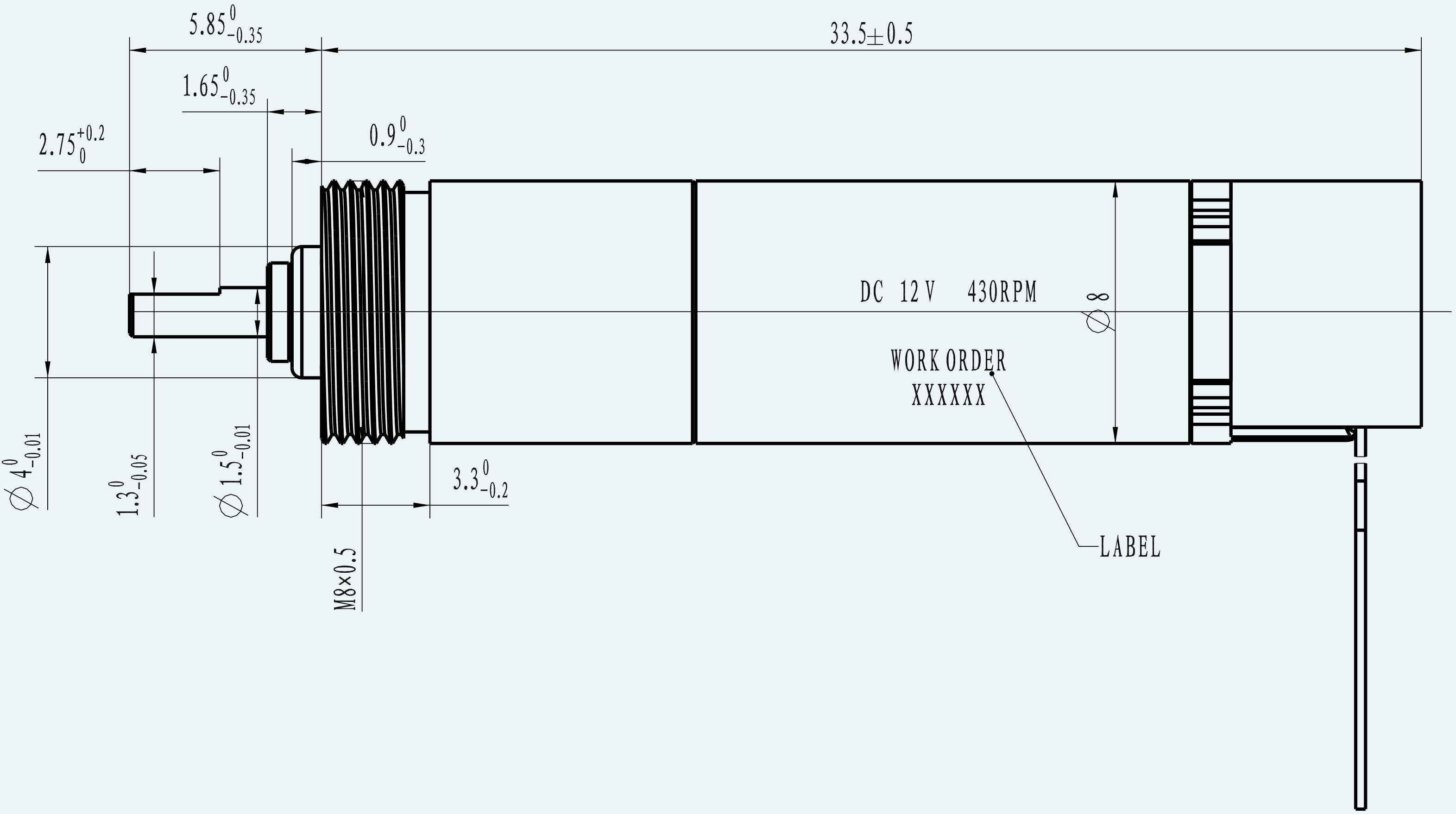

Mechanical Dimensions extracted from dimension drawing for ES-CM-BR01 8 mm Coreless Brushed Motor Series — Controlled structure diagram preview for envelope review
