Joint Torque Sensor — Engineering Configuration V002

Exact SKU: ES-SN-C18-S002-V002

Confirm measurement range, accuracy, interface, mounting, calibration and environmental conditions before integration.

Accuracy
0.2 %FS
Resolution
0.06 %FS
Repeatability
0.1 %FS
Protection Rating
IP65
Operating temperature
0–75 °C
Mass
282 g
Axial Load Capacity
500 N
Bending Moment Capacity
50 N·m
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

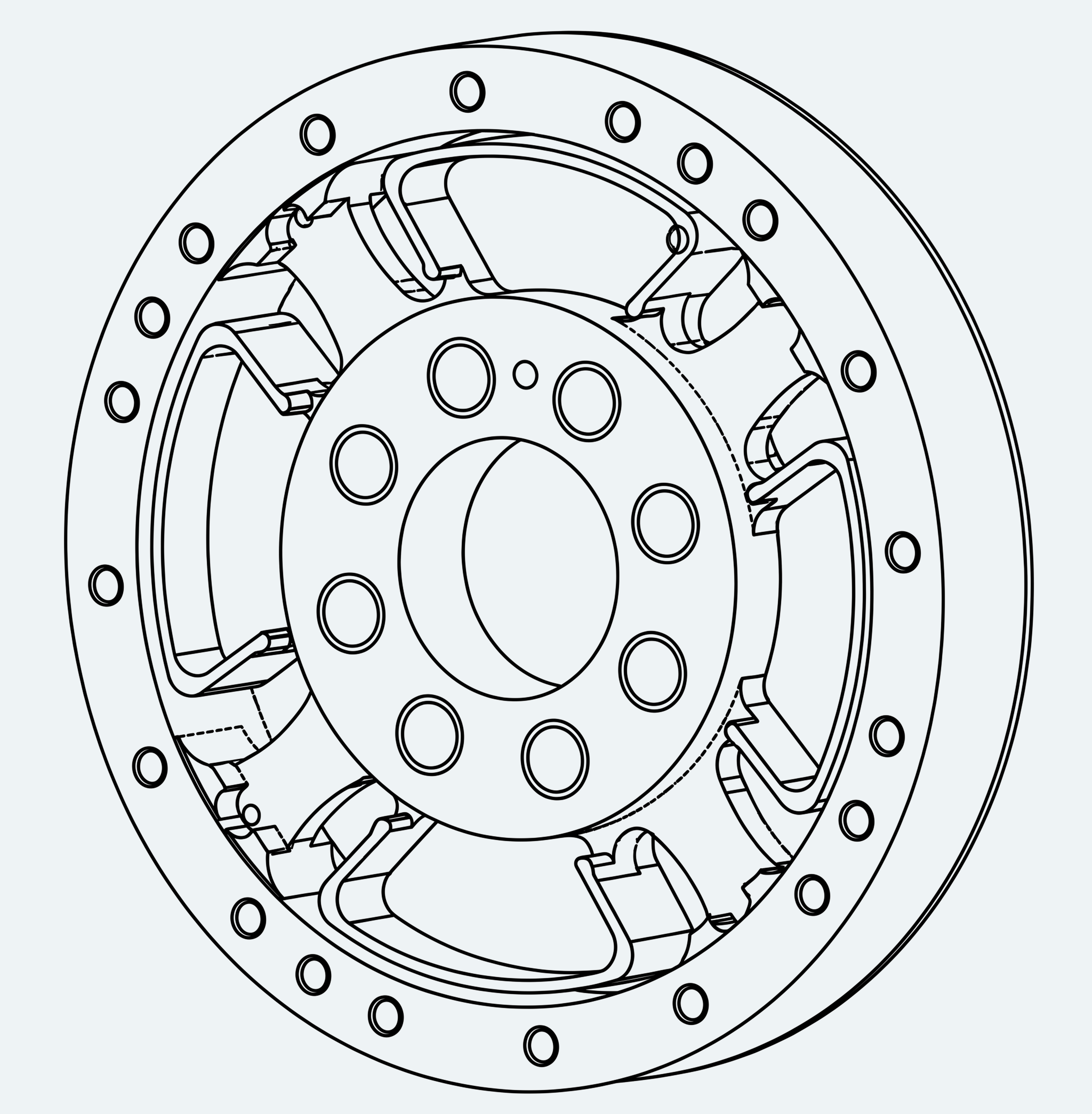

2D Structure Diagram

ES-SN-C18-S002-V002 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

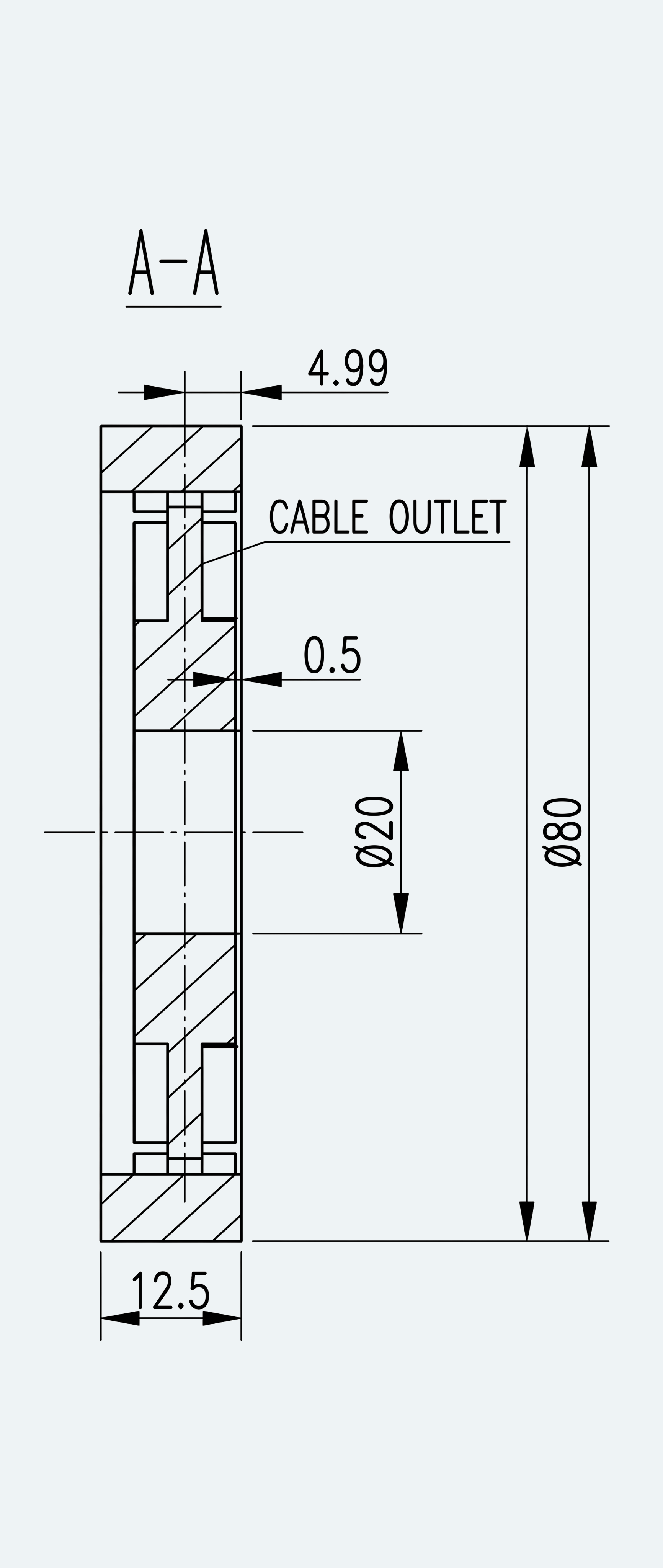

Mechanical View 1 for ES-SN-C18-S002-V002
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 42 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

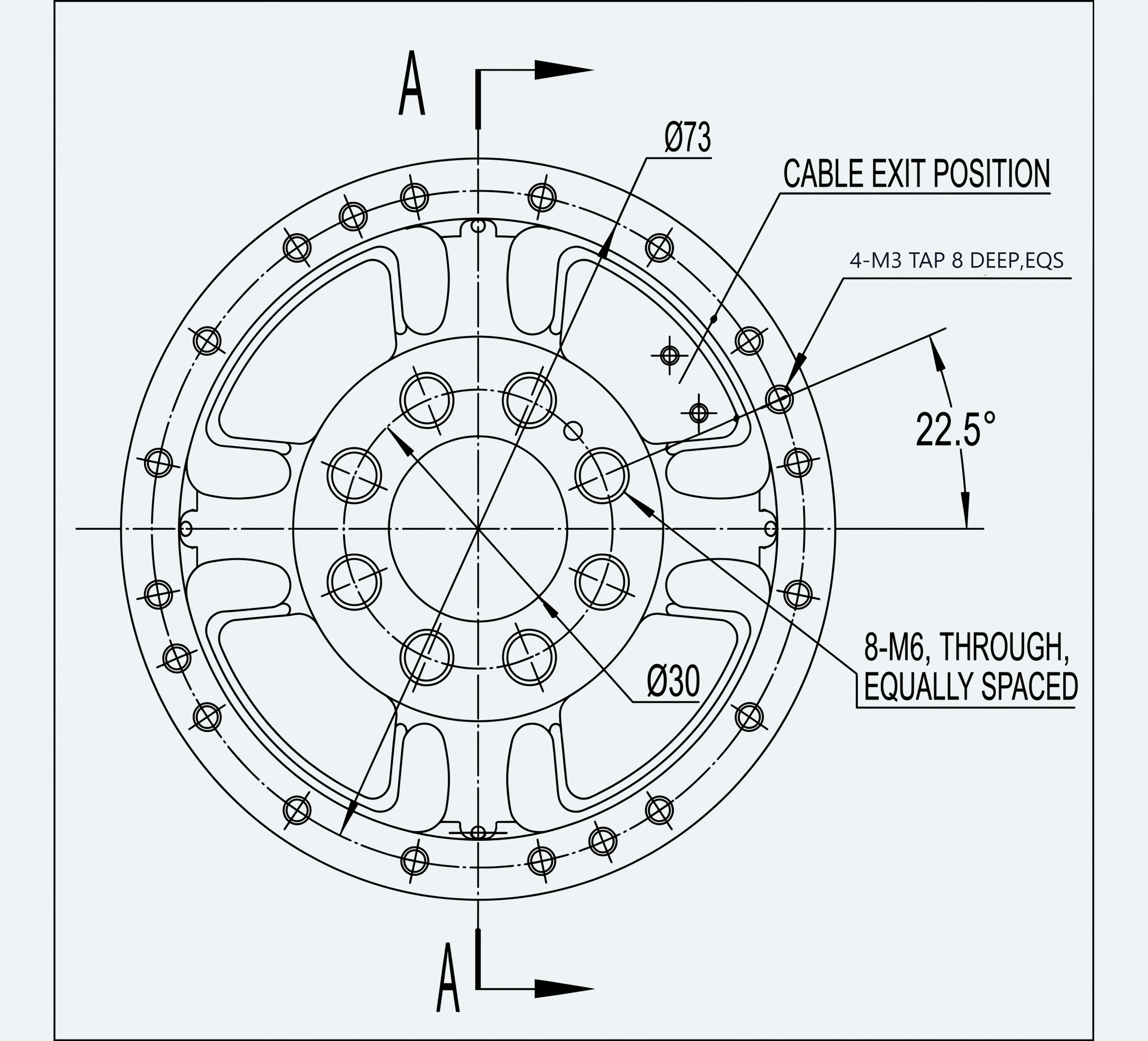

Angular spacing between holes
22.5° degree
Angular spacing between holes
11.25° degree
Bolt circle diameter
Ø73 mm
Inner bore diameter
Φ20 mm
Inner mounting circle diameter
Ø30 mm

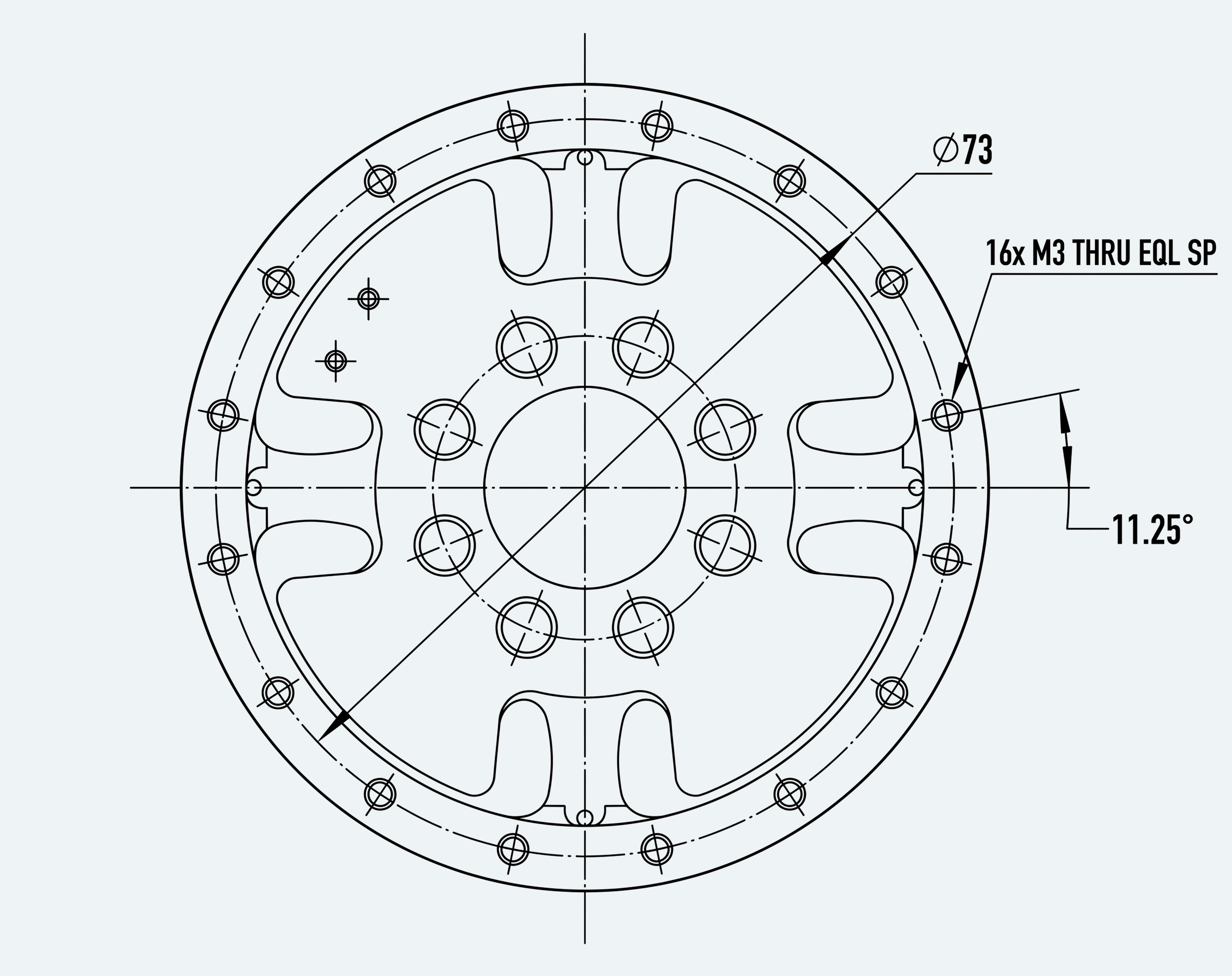

Mounting hole quantity, specification and distribution
16×M3 through holes equally spaced
Outer mounting circle diameter
Ø73 mm
Threaded hole specification and distribution
4× M3 tapped holes, 8mm deep, equally spaced mm
Through hole specification and distribution
8× M6 through holes, equally spaced mm
Width
12.5 mm
Stator outer diameter
80 mm
Overall Thickness
12.5 mm

Electrical Parameters

Bridge Excitation Voltage
5 VDC
Bridge Impedance
700 ±3 Ω
Cable Length
2 m
Communication Interface
None
Electrical Interface
4-core shielded cable, pin terminals
Input Impedance
700 Ω
Output Impedance
700 Ω
Output Type
Analog
Recommended Supply Voltage
6 VDC
Resolution
0.06 %FS
Sensitivity
1.45±0.02mV/V

Performance Parameters

Accuracy
0.2 %FS
Axial Load Capacity
500 N
Bending Moment Capacity
50 N·m
Nonlinearity
0.1 %FS
Orthogonality Error
1 %FS
Overload Capacity
350 %FS
Radial Load Capacity
500 N
Repeatability
0.1 %FS
Zero Drift
0.008 %FS

Mechanical Parameters

Material
Alloy steel
Measuring Range
180 N·m
Torsional Stiffness
186,500 N·m/rad
Mass
282 g

Environmental & Insulation

Operating Relative Humidity
20–80 % RH
Operating temperature
0–75 °C
Protection Rating
IP65
Storage Relative Humidity
20–80 % RH
Storage Temperature
-25–70 °C
Temperature Zero Drift
0.005 %FS/10°C
