Joint Torque Sensor — Engineering Configuration V004

Exact SKU: ES-SN-C18-S002-V004

Confirm measurement range, accuracy, interface, mounting, calibration and environmental conditions before integration.

Accuracy
0.2 %FS
Resolution
0.04 %FS
Repeatability
0.2 %FS
Protection Rating
IP65
Operating temperature
0–75 °C
Mass
200 g
Axial Load Capacity
600 N
Bending Moment Capacity
15 N·m
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-SN-C18-S002-V004 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

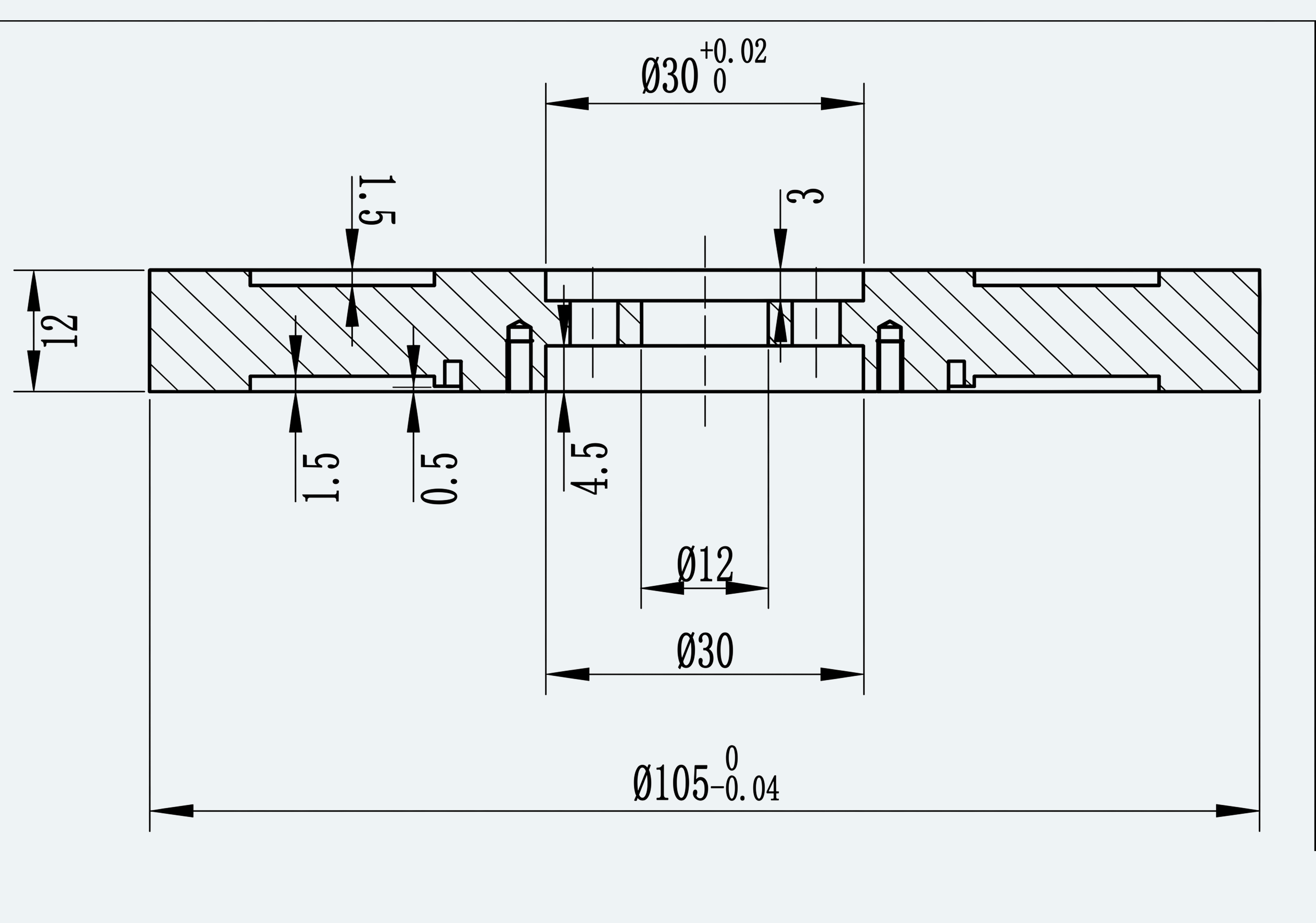

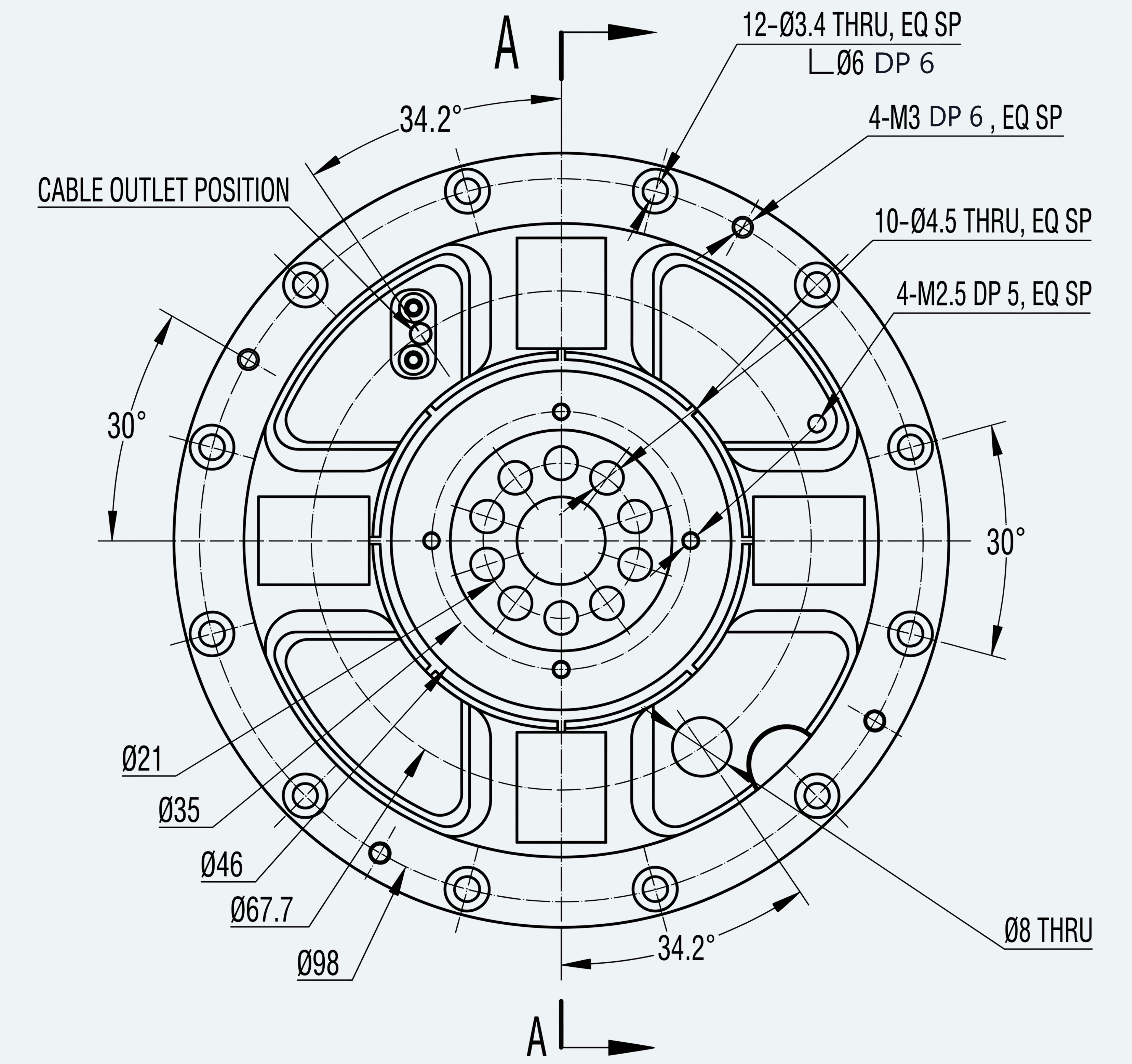

Mechanical View 1 for ES-SN-C18-S002-V004
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 54 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

10 through holes evenly spaced
10 holes × Ø4.5 through hole, evenly distributed mm
12 through holes evenly spaced
12 holes × Ø3.4 through hole, evenly distributed mm
4 threaded holes evenly spaced
4 holes × M3 thread, depth 6mm, evenly distributed mm
4 threaded holes evenly spaced
4 holes × M2.5 thread, depth 5mm, evenly distributed mm
Counterbore depth
Ø6 counterbore, 6mm depth mm
Fourth ring diameter
Ø67.7 mm
Groove depth 1
1.5 mm
Groove depth 2
1.5 mm
Groove depth 3
0.5 mm
Groove depth 4
4.5 mm
Inner diameter
Ø21 mm
Inner hole diameter
Ø12 mm
Lower shaft diameter
Ø30 mm
Mounting angular position
34.2° angular position degree
Mounting angular position
30° angular position degree
Mounting angular position
30° angular position degree
Mounting angular position
34.2° angular position degree
Outer diameter
Ø98 mm
Second ring diameter
Ø35 mm
Shaft diameter and tolerance
Ø30 +0.02/0 mm
Third ring diameter
Ø46 mm
Through hole
Ø8 through hole mm
Stator outer diameter
105 mm
Overall Thickness
12 mm

Electrical Parameters

Bridge Excitation Voltage
5 VDC
Bridge Impedance
700 ±3 Ω
Cable Length
2 m
Communication Interface
None
Electrical Interface
4-core shielded cable, pin terminals
Input Impedance
700 Ω
Output Impedance
700 Ω
Output Type
Analog
Recommended Supply Voltage
6 VDC
Resolution
0.04 %FS
Sensitivity
1.48±0.1mV/V

Performance Parameters

Accuracy
0.2 %FS
Axial Load Capacity
600 N
Bending Moment Capacity
15 N·m
Nonlinearity
0.15 %FS
Orthogonality Error
1 %FS
Overload Capacity
150 %FS
Radial Load Capacity
600 N
Repeatability
0.2 %FS
Zero Drift
0.002 %FS

Mechanical Parameters

Material
Aluminum alloy
Measuring Range
300 N·m
Torsional Stiffness
382,500 N·m/rad
Mass
200 g

Environmental & Insulation

Operating Relative Humidity
20–80 % RH
Operating temperature
0–75 °C
Protection Rating
IP65
Storage Relative Humidity
20–80 % RH
Storage Temperature
-25–70 °C
Temperature Zero Drift
0.05 %FS/10°C
