Joint Torque Sensor — Engineering Configuration V003

Exact SKU: ES-SN-C18-S002-V003

Confirm measurement range, accuracy, interface, mounting, calibration and environmental conditions before integration.

Accuracy
0.4 %FS
Resolution
0.06 %FS
Repeatability
0.15 %FS
Protection Rating
IP65
Operating temperature
0–75 °C
Mass
126 g
Axial Load Capacity
250 N
Bending Moment Capacity
25 N·m
Request a Quote

Product Media

3D model and reviewed 2D drawing

Review the component envelope and interface references before requesting controlled engineering files.

2D Structure Diagram

ES-SN-C18-S002-V003 envelope view

Scale: 100%

2D Engineering Drawing Center

Mechanical Dimensions

Reviewed engineering view for this product configuration.

Primary Drawing Viewer

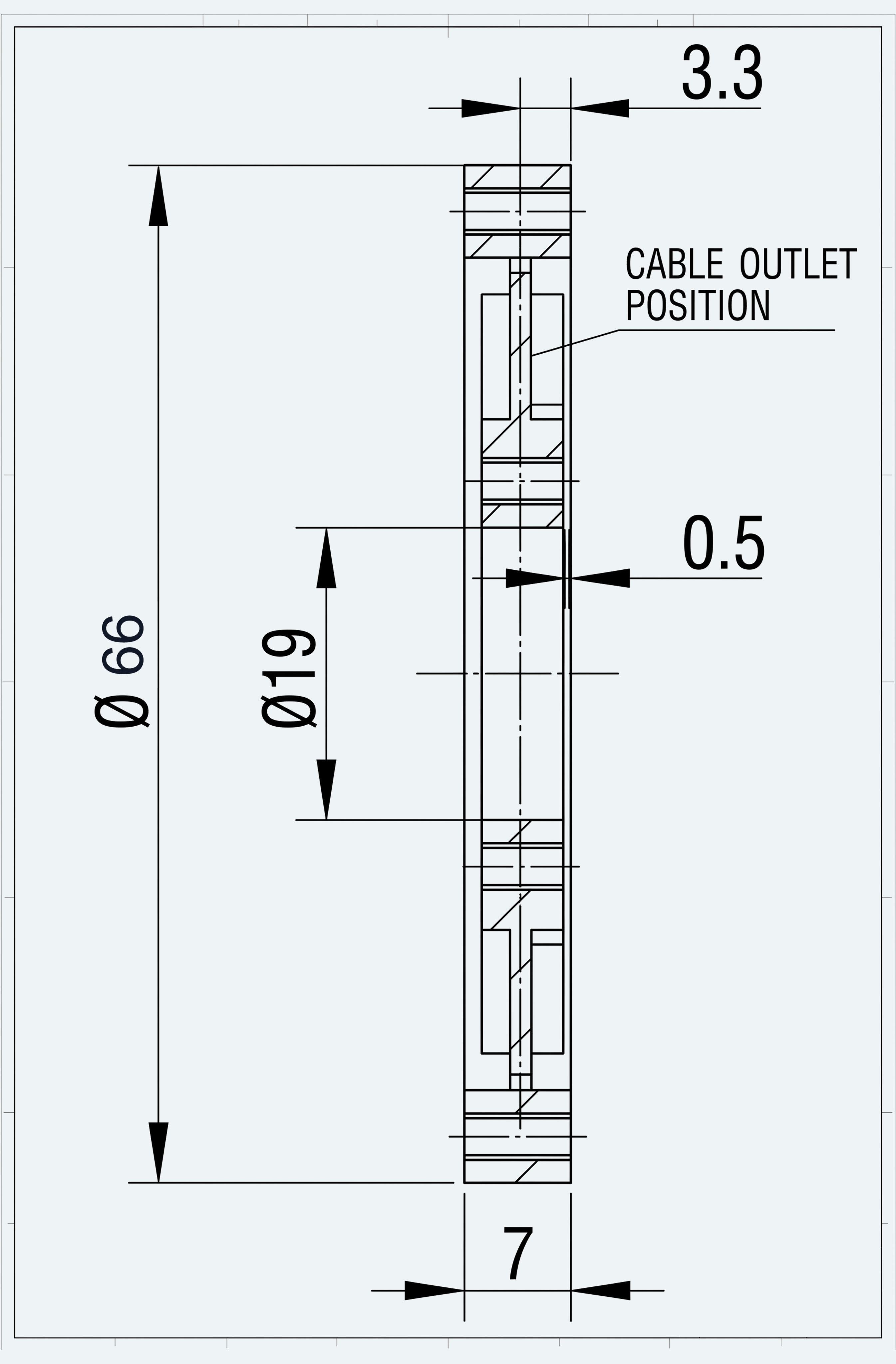

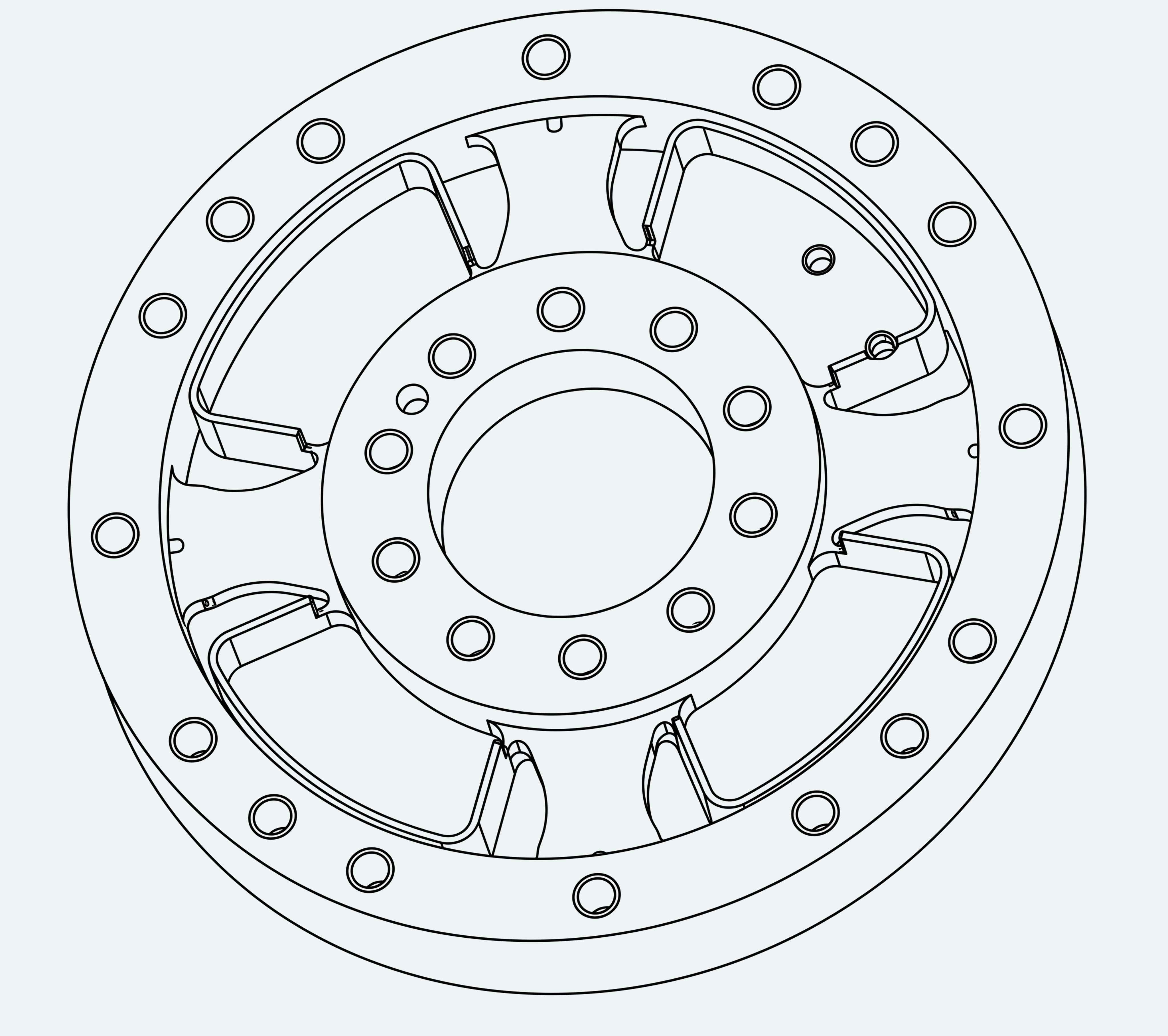

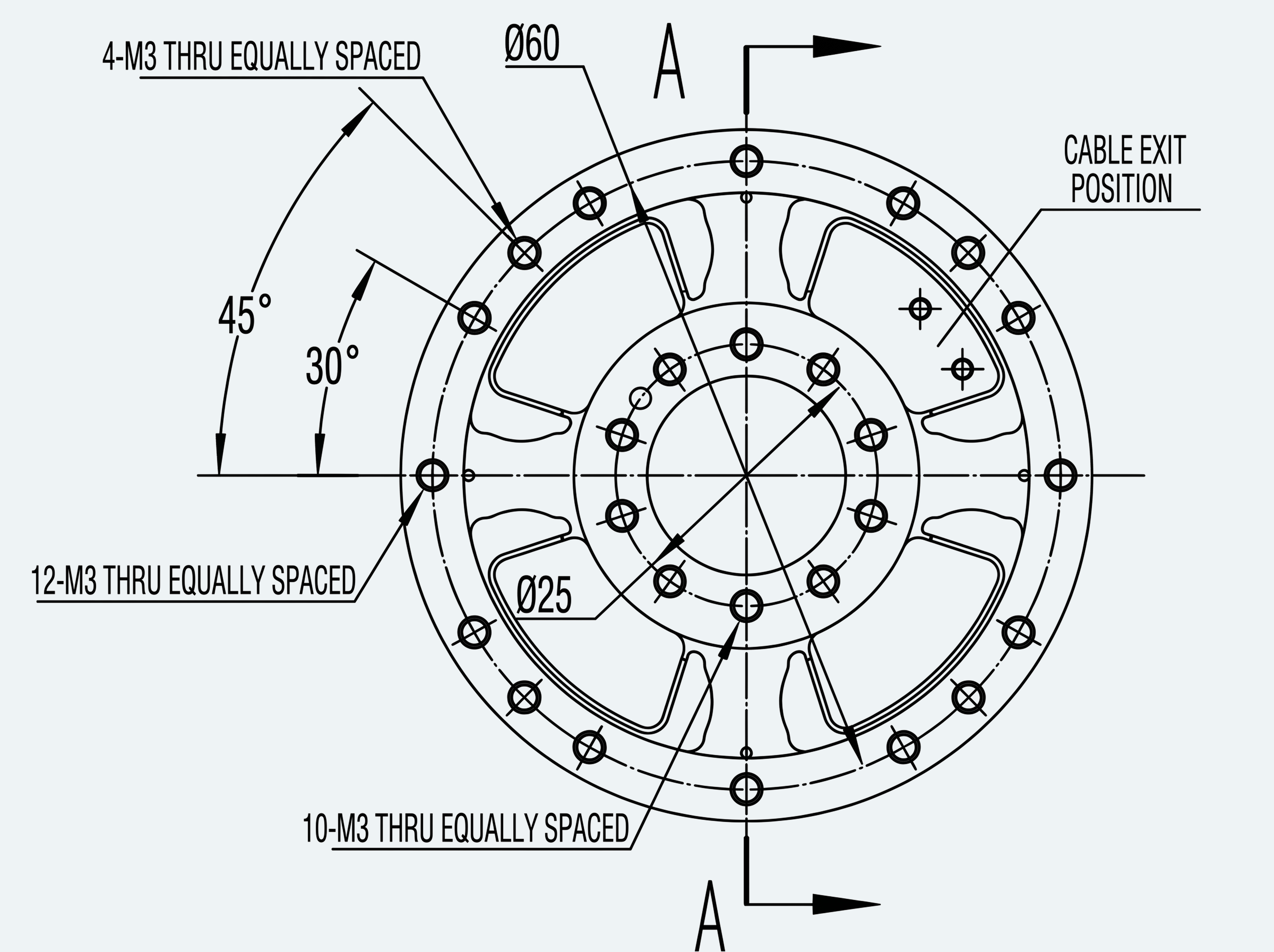

Mechanical View 1 for ES-SN-C18-S002-V003
Mechanical View 1

Reviewed drawing preview

Verified preview for preliminary engineering review. Confirm the controlled revision before manufacturing use.

Documentation access below

3D Design File Viewer

Interactive 3D preview

More

3D CAD review required

A verified browser preview is not currently available for this exact SKU.

Request controlled CAD / STEP review

3D CAD remains available through the controlled engineering review workflow.

Full Specifications

Grouped engineering parameters

All 41 reviewed public parameters for this exact SKU are shown below. Unreviewed source fields remain excluded.

Dimensions & Integration

30 degree angular spacing
30 degrees degree
45 degree angular spacing
45 degrees degree
Diameter 25
Diameter 25 mm
Diameter 60
Diameter 60 mm
Four M3 through holes equally spaced
4 × M3 through holes, equally spaced mm
Inner bore diameter
Diameter 19 mm
Local axial spacing
3.3 mm
Local axial spacing
0.5 mm
Twelve M3 through holes equally spaced
12 × M3 through holes, equally spaced mm
Stator outer diameter
66 mm
Overall Thickness
7 mm

Electrical Parameters

Bridge Excitation Voltage
5 VDC
Bridge Impedance
700 ±3 Ω
Cable Length
2 m
Communication Interface
None
Electrical Interface
4-core shielded cable, pin terminals
Input Impedance
700 Ω
Output Impedance
700 Ω
Output Type
Analog
Recommended Supply Voltage
6 VDC
Resolution
0.06 %FS
Sensitivity
0.95±0.02mV/V

Performance Parameters

Accuracy
0.4 %FS
Axial Load Capacity
250 N
Bending Moment Capacity
25 N·m
Nonlinearity
0.15 %FS
Orthogonality Error
1 %FS
Overload Capacity
350 %FS
Radial Load Capacity
250 N
Repeatability
0.15 %FS
Zero Drift
0.008 %FS

Mechanical Parameters

Material
Alloy steel
Measuring Range
50 N·m
Torsional Stiffness
52,600 N·m/rad
Mass
126 g

Environmental & Insulation

Operating Relative Humidity
20–80 % RH
Operating temperature
0–75 °C
Protection Rating
IP65
Storage Relative Humidity
20–80 % RH
Storage Temperature
-25–70 °C
Temperature Zero Drift
0.05 %FS/10°C
