Robot component catalog
Browse robot hardware by component family, product platform or exact SKU. Compare configurations, specifications and engineering-file availability.
251
Catalog series
2,169
Model SKUs
1,647
Engineering files
Counts reflect the current catalog. CAD access varies by configuration and is available by request for supported products.
Component family navigator
440 configurations 98 platforms
Product platform
Exact SKU
ES-ST-11HS2033-4D-100Key specifications
Motor Body Length
33 mm
Detent torque
0.003 N·m
Frame Size
28 mm
Exact SKU
ES-ST-11HS2045-4D-100Key specifications
Motor Body Length
45 mm
Detent torque
0.004 N·m
Frame Size
28 mm
Product platform
Exact SKU
ES-ST-14HS2033-4D-100Key specifications
Motor Body Length
33 mm
Detent torque
0.006 N·m
Frame Size
35 mm
Exact SKU
ES-ST-14HS2045-4D-100Key specifications
Motor Body Length
45 mm
Detent torque
0.01 N·m
Frame Size
35 mm
Product platform
Exact SKU
ES-ST-17HS2034-4D-100Key specifications
Motor Body Length
34 mm
Detent torque
0.014 N·m
Frame Size
42 mm
Exact SKU
ES-ST-17HS2048-4D-250Key specifications
Motor Body Length
48 mm
Detent torque
0.02 N·m
Frame Size
42 mm
Product platform
Exact SKU
ES-ST-23HS2045-4D-200Key specifications
Motor Body Length
45 mm
Detent torque
0.03 N·m
Frame Size
57 mm
Exact SKU
ES-ST-23HS2065-4D-250Key specifications
Motor Body Length
65 mm
Detent torque
0.06 N·m
Frame Size
57 mm
Product platform
Exact SKU
ES-ST-24HS2047-4D-400Key specifications
Motor Body Length
47 mm
Detent torque
0.03 N·m
Frame Size
60 mm
Exact SKU
ES-ST-24HS2068-4D-400Key specifications
Motor Body Length
68 mm
Detent torque
0.06 N·m
Frame Size
60 mm
Exact SKU
ES-FM-H01-OD038-T0P135NM-001Key specifications
Number of Poles
14
Rated Power
50 W
Operating Supply Voltage
48 VDC
Exact SKU
ES-FM-H01-OD043-T0P2NM-001Key specifications
Number of Poles
14
Rated Power
77 W
Operating Supply Voltage
48 VDC
Exact SKU
ES-FM-H01-OD050-T0P3NM-001Key specifications
Number of Poles
20
Rated Power
157 W
Operating Supply Voltage
48 VDC
Product platform
Exact SKU
ES-FM-H01-OD060-T0P7NM-001Key specifications
Number of Poles
20
Rated Power
264 W
Operating Supply Voltage
48 VDC
Exact SKU
ES-FM-H01-OD060-T1NM-001Key specifications
Number of Poles
20
Rated Power
209 W
Operating Supply Voltage
48 VDC
Exact SKU
ES-FM-H01-OD070-T0P66NM-001Key specifications
Number of Poles
20
Rated Power
252 W
Operating Supply Voltage
48 VDC
Product platform
Exact SKU
ES-FM-H01-OD085-T1P2NM-001Key specifications
Number of Poles
20
Rated Power
370 W
Operating Supply Voltage
48 VDC
Exact SKU
ES-FM-H01-OD085-T2NM-001Key specifications
Number of Poles
20
Rated Power
732 W
Operating Supply Voltage
48 VDC
Exact SKU

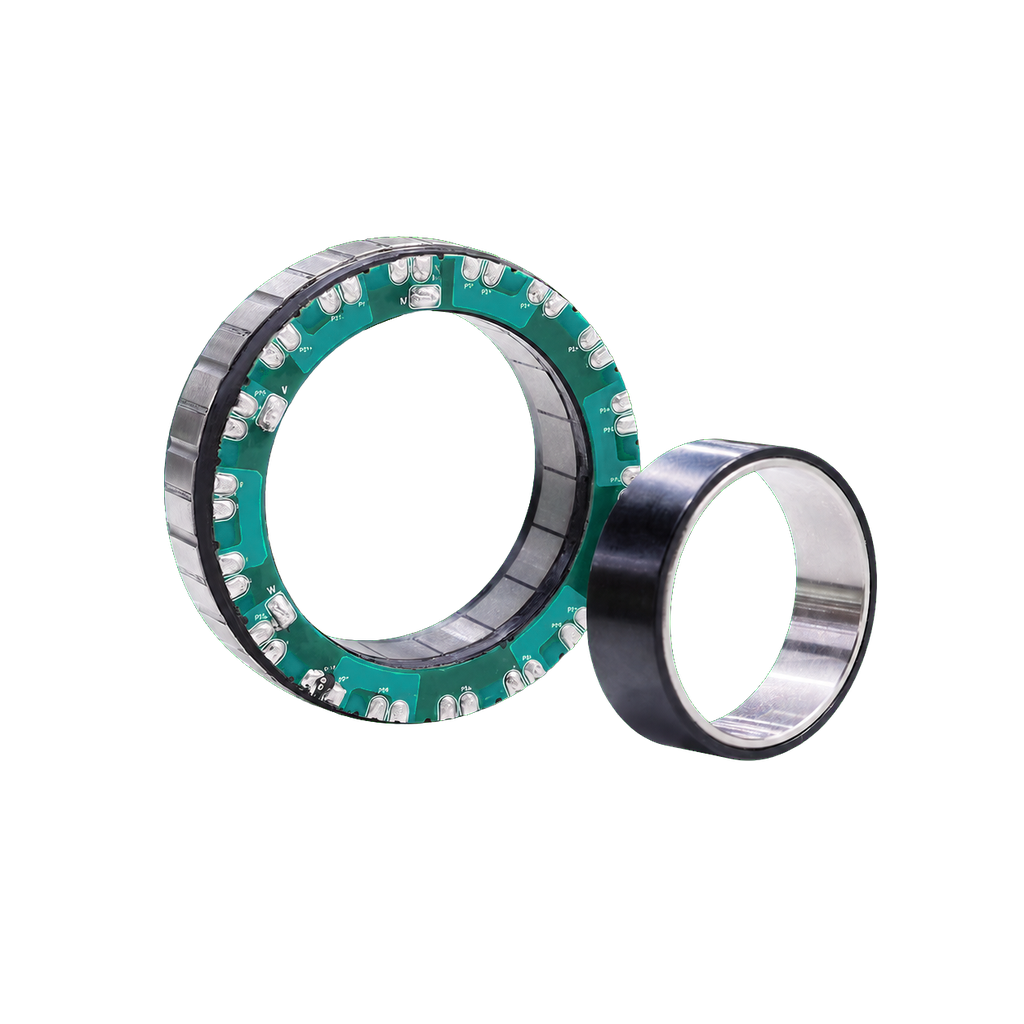

ES-FM-H01-OD115-T3P5NM-001Key specifications
Number of Poles
20
Rated Power
1173 W
Operating Supply Voltage
48 VDC
Browse by robot subsystem
Can't find the right configuration?
Share the requirements you already know and we can help identify the closest catalog platform or a custom hardware option.
